Xantrex

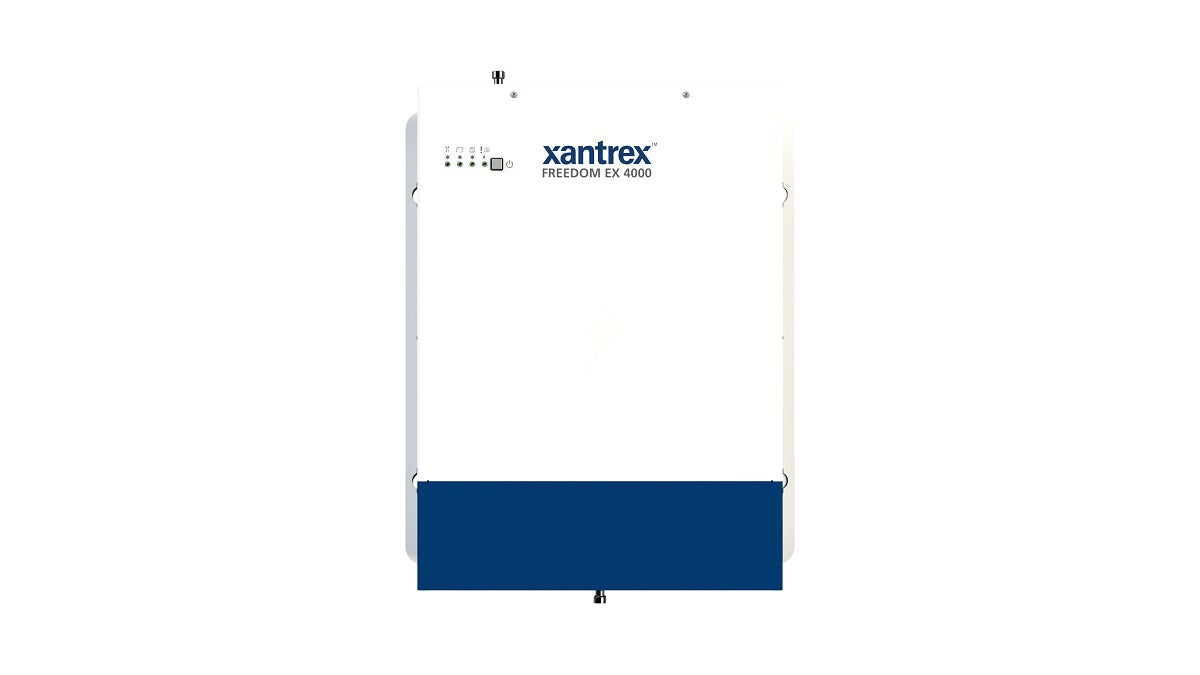

Xantrex Freedom Ex4000 4000w Marine Inverter Charger 48vdc In 120vac Out

Xantrex Freedom Ex4000 4000w Marine Inverter Charger 48vdc In 120vac Out

Regular price $3,393.00
Regular price Sale price $3,393.00
Sale Sold out

Xantrex Freedom EX 4000 Inverter/Charger with 48VDC-to-12VDC Converter

Model: 820-4080-41
  • Stack up to 3 units in parallel; up to 2 units in series
  • 48VDC to 12VDC converter output
  • Highly configurable charger specifically designed for lithium ion batteries
  • Built-in 50A Transfer Relay
  • Extended Surge Rating to 2X continuous power for 5 seconds
  • True Sine Wave AC Power
  • Ignition Control Feature to turn inverter on/off via a 12VDC signal

The new FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols — RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.

Specifications
ELECTRICAL SPECS - INVERTER
AC Output Operating Voltage Options 105 - 130VAC
Continuous Output Power Continuous Power 4000 W @40 C True sine wave (TSW) at 120Vac
Continuous AC Output Current 33A
Surge Power 8000W(5 sec)
Frequency 60Hz
ELECTRICAL SPECS - BATTERY CHARGER
Nominal DC Output Voltage 48VDC
Charger Voltage Range 40 - 64VDC
Maximum DC Output Current (user configurable down to 5 A) 80A
Supported Battery Types Flooded, Gel, AGM, Lithium Ion, Custom
ELECTRICAL SPECS - PASS-THROUGH
AC Input Voltage:
Single-phase (L1 - N and L2 - N) 80 - 138Vac
Split-phase* (L1 - L2) 160 - 276Vac
Frequency (input/output) 60Hz
Continuous AC current (input/output) 40A
ELECTRICAL SPECS - 12 VDC POWER SUPPLY
Nominal DC Output Voltage (fully regulated) 13.5VDC
Maximum DC Output Current 45ADC continuous (at 77 F (25 C) ambient)
Typical Application* Powering 12 VDC Loads
ELECTRICAL SPECS - COMMUNICATIONS SUPPORTED
Recreational Vehicles (RV) RV-C Protocol
Trucking Vehicles (future offering) J-1939 Protocol
Marine Vessels (future offering) NMEA-2000 Protocol
GENERAL SPECS
Operating Temperature Range 14 to 140 F (-10 to 60 C), with output derated above 104 F (40°C)
Storage Temperature Range -40 to 158 F (-40 to 70 C)
Operating Humidity Range 5 to 95% RH, non-condensing
Transfer Relay AC Current Rating 50A (40A continuous)
L x W x H 17.1in (434mm) x 14in (354mm) x 8.1in (205mm)
Net Weight 79.4lbs (36.0kg)

What's in the Box:
  • Freedom EX 4000
  • Installation guide
  • pair of ½"" bushings
  • pair of ¾"" bushings
  • one network terminator
