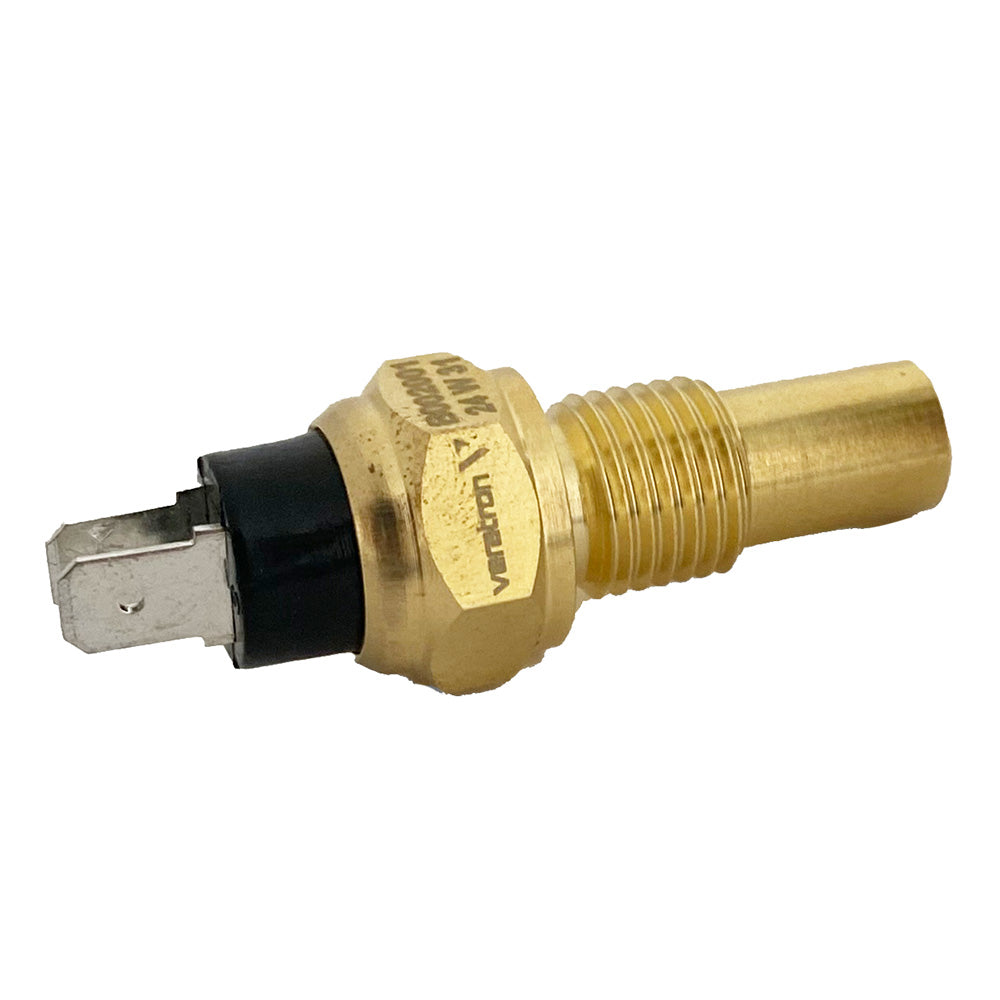

Veratron Engine Oil Temperature Sensor - M16x1.5 Thread - 150°C Temp Range

Engine Oil Temperature Sensor - M16x1.5 Thread - 150°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature
• Length - 28.5mm (1-1/8")
• Thread - M16x1.5
• Calibration - 150°C
• Measurement Range - 150°C
• Output Signals - Resistive
• IP67
• Insulated ground pin

Brand: Veratron

Model Number: B002006

Weight: 0.1

Length: 3

Height: 1

Width: 1
