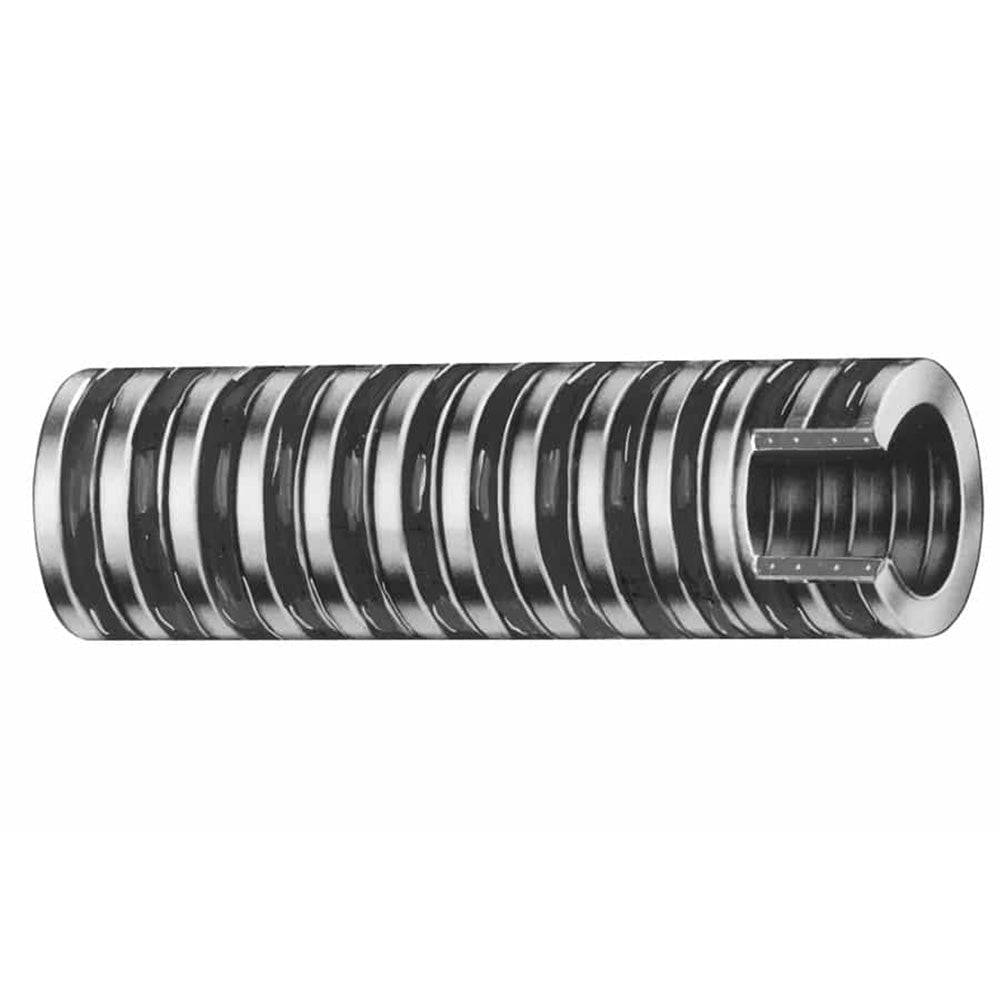

Trident Marine 1-1/8" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear w/Black Helix - Sold by the Foot

1-1/8" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix - Sold by the Foot

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Sold by the foot
• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube & Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10°F-120°F (-12°C-49°C)
• Inner Diameter: (inch) 1-1/8" / (mm) 28.6
• Outer Diameter: (inch) 1.39" / (mm) 35.4
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
• Bend Radius: (inch) 3.5" / (mm) 8.9

*Burst Pressure is 4 x Working Pressure

Brand: Trident Marine

Harmonization Code: 3917.29.0050

Model Number: 147-1186-FT

Weight: 0.28

Length: 2

Height: 2

Width: 2
