Sionyx

Sionyx Crv-500c Nightwave Low Light Fixed Mount Camera Gray Housing

Sionyx Crv-500c Nightwave Low Light Fixed Mount Camera Gray Housing

Regular price $1,995.00
Regular price Sale price $1,995.00
Sale Sold out

IMPORTANT NOTICE TO RESELLERS -- UPDATED April 21, 2023

Authorized Indirect Dealer Application - To resell this product YOU MUST BECOME AN AUTHORIZIED INDIRECT DEALER. Please DOWNLOAD the AUTHORIZED INDIRECT DEALER APPLICATION from our Authorized Reseller Programs. Please fill in all fields in the sections on page 1 and the additional Store Locations if applicable on Page 2. Fields marked with an * are required. Please note that NO Amazon, eBay or other third party sales are allowed. Please complete this application and email a signed PDF (or digitally signed) copy to: sales@sionyx.com and sales@wintronelectronics.com

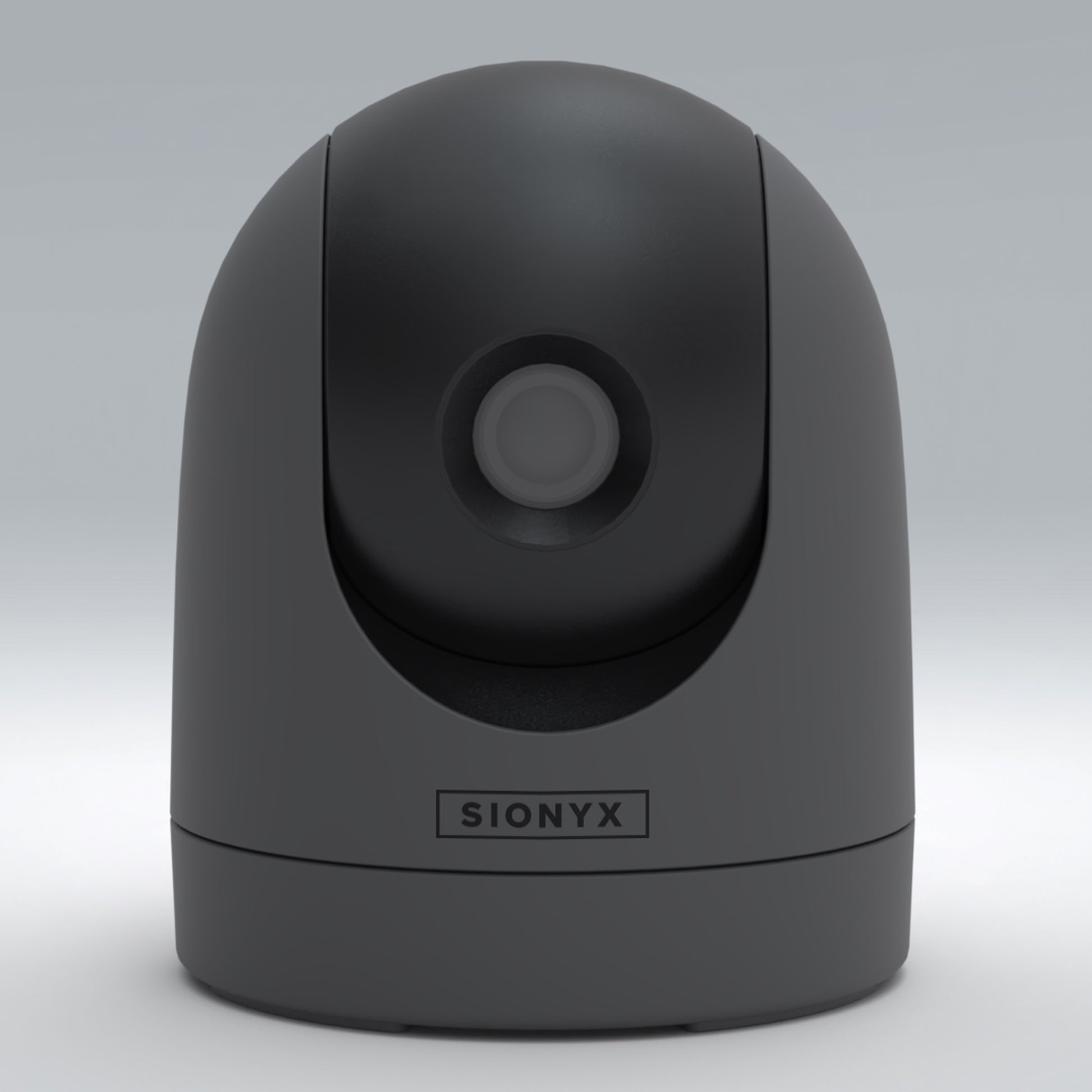

Sionyx Nightwave Ultra Low-light Marine Camera - Gray Hosuing

Model: C014700
  • <1 millilux moonless starlight night vision
  • 44 degree field of view
  • Rugged and water-resistant (IP67 rated)
  • Connect directly to a major brand MFD
  • Flexible installation - Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware or Temporarily mount with a 1/4""-20 mount interface for use with standard mounts
  • 12Vdc power (fused)
  • NTSC/PAL Analog video connection (SMA, BNC, or RCA)
  • Manual vertical tilt adjustment

Nightwave is an ultra low-light marine camera built around SIONYX’s patented Black Silicon BSI CMOS sensor. It allows all levels of mariners to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras — navigating safely, avoiding collisions, and maximizing time on the water.

Featuring <1 millilux moonless starlight sensitivity, with Nightwave you will see well beyond human eyesight and detect man-sized objects at 150 meters. The 44 field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 3 ft for 30 minutes, you can safely use Nightwave in inclement weather conditions.

With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analog video output, displaying clear color digital night vision.

Get Mobile with your Nightwave. The SIONYX Nightwave App allows your mobile device to remotely change the settings on your Nightwave. Availble on The App Store.

Specifications
CAMERA
SENSOR TYPE XQE1350 BSI CMOS
RESOLUTION 1280 X 1024
FRAME RATE 60 HZ
HORIZONTAL FOV 44°
VISIBLE SPECTRUM 400-1200NM
FOCUS RANGE 10M TO INFINITY
LENS 16MM F/1.4
SYSTEM
VIDEO OUT NTSC
VIDEO CONNECTION SMA / BNC/ RCA
WIRELESS COMMUNICATIONS WIFI + BLUETOOTH
POWER IN 12V DC
POWER CONNECTION TINNED COPPER WIRE
ENVIRONMENTAL
INGRESS PROTECTION IP67 WATER/DUST RESISTANT
SHOCK & VIBRATION IEC60945 V15G , H:9G] , IK08
OPERATING TEMPERATURE -20°C TO +50°C
STORAGE TEMPERATURE -20°C TO +80°C
RANGE PERFORMANCE
DETECT MAN-SIZED OBJECT 150m Clear weather 1/4 moon
PHYSICAL
WEIGHT 870 G [1.9 LBS]
DIMENSIONS 127 X 127 X 152 MM [5 X 5 X 6 IN]
MOUNTING OPTIONS TRIPOD OR RAMMOUNT
MATERIAL MATERIAL UV RESISTANT POLYCARBONATE

What's in the Box:
  • SIONYX Nightwave Ultra Low-Light Marine Camera (CRV-500C) - Gray Housing
  • Power/Video Cable
  • BNC to RCA adapter
  • 2A inline fuse
  • Removable Mounting Base
  • Mounting Hardware
  • Mounting Gasket
  • Mounting Template
