Simrad Nso Evo3s Mpu Only

Simrad Nso Evo3s Mpu Only

Regular price $4,999.00
Regular price Sale price $4,999.00
Sale Sold out

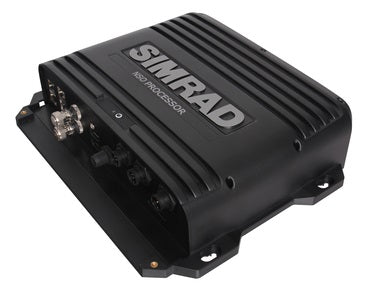

Simrad NSO evo3S MPU Only

Model: 000-15100-001
  • Large-Screen Navigation System
  • Multi-TouchSensible (with compatible display)
  • Dual Independent Video Output
  • Full HD Video
  • Performance Module compatibility
  • Cartography Choice
  • Smaller, lighter design
  • Quad-Core Processing Power
  • Independent HDMI output ports allow different setups on each display
  • 2 x Quad core processors
  • Dedicated processor per monitor gives superior speed and chart draw performance
  • Control both NSO evo3S MPU monitors direct from your Ipad or Android Tablet.
  • Multi zoom touch gestures
  • Naviconics Depth Highlight range
  • Naviconics shallow water highlight
  • AIS Sarts
  • Fusion Link Audio Device Support
  • Grib Weather
  • Flir Camera integration
  • GS25 Antenna Configuration
Mechanical / Environmental
Casing ABS Plastic
Operating Temp -15°C to +55°C
water ingress IPx2
Weight 1060g
dimensions (overall) 281mm (W) x 232mm (H) x 65.5mm (D)
Operating voltage 9 - 31.2 V DC
Power consumption 45W (Max)
Low power standby mode yes
Protection reverse polarity and temporary over-voltage to 36V
Alarm output current capable of driving 10A relay coil
Processor iMX61 quad core
Storage 8GB Flash
Conformity CE, C-Tick, HDMI
ethernet 3 ports total - 1 & 2 are PoE (RJ45 socket)
NMEA 2000 1 port on rear (Micro-C male)
Video input 2 ports on rear (BNC female. NTCS or PAL format)
Video output 1024x768 (XGA 4:3), 1280x720 (HD 16:9),
USB mass storage, keyboard and mouse (Type A socket)
SD 32GB (Full size SD card socket)
NMEA 0183 baud rate 4800, 9600, 19200, & 38400 (via proprietary cable)
NMEA 0183 via RS232 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
charting support Navionics, CMAP, Insight, NV Charts on SD

What's in the Box:
  • NSO evo3S MPU
  • Power Cable
  • RJ45-Yellow Round Ethernet adapter cable RJ45M / 5PinF
  • NSO evo2 NMEA0183/Touch Monitor serial cable 2 m (6.5 ft) Eight core cable
  • N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
  • N2K-PWR-RD - NMEA 2000® power cable. Includes power cable and 1 x T connector
  • TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators
  • N2K-T-RD - Micro-C T-connector for connection of an additional network device x 2
  • NSO evo2 Installation Kit
  • Documentation
