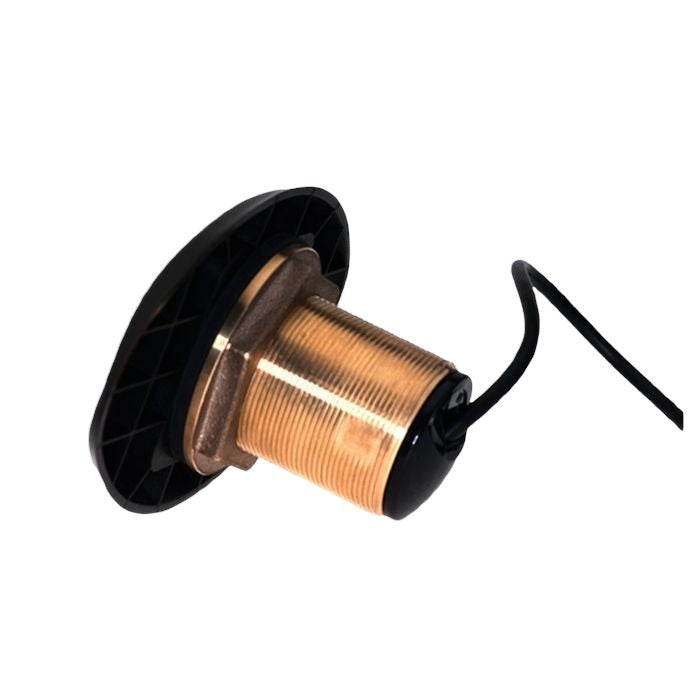

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 12D

Simrad Bronze HDI XDCR 12deg Tilt 50/200 455/800

Model: 000-13906-001

• Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Specifications
Frequencies

50,200,455 and 800 kHz
Beam width @ -3db	50kHz 45 deg200kHz 11 deg455kHz Fore to aft 2.8 deg, Port to starboard 56 deg 800kHz Fore to aft 1.6 deg, Port to starboard 32 deg
Cable length	10 meter

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Simrad

UPC: 9420024162613

Model Number: 000-13906-001

Weight: 15
