Simrad
Simrad Bronze Hdi Thru Hull 50/200/455/800 Khz 9-pin 0d
Simrad Bronze Hdi Thru Hull 50/200/455/800 Khz 9-pin 0d
Regular price
$519.00
Regular price
Sale price
$519.00
Unit price
/
per

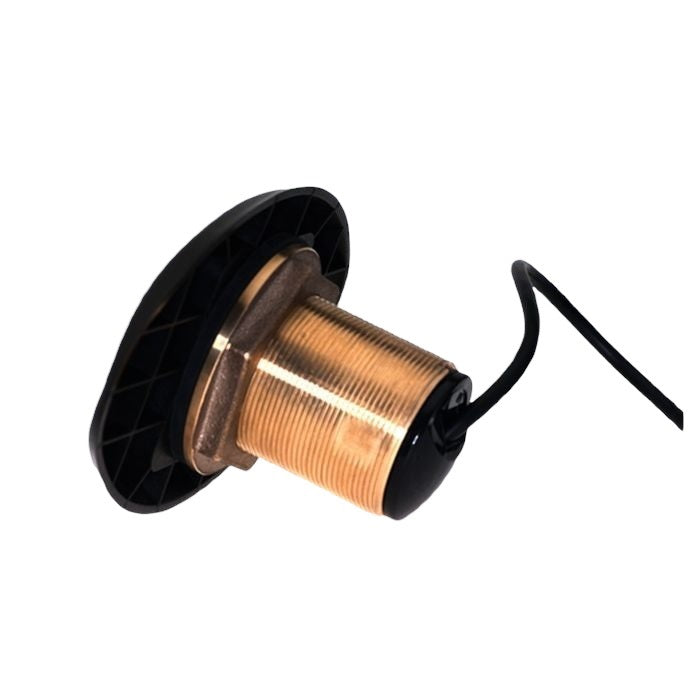

Simrad Bronze HDI XDCR 0deg Tilt 50/200 455/800
Model: 000-13905-001- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
SpecificationsFrequencies | 50,200,455 and 800 kHz |
Beam width @ -3db | 50kHz 45° 200kHz 11° 455kHz Fore to aft 2.8°, Port to starboard 56° 800kHz Fore to aft 1.6°, Port to starboard 32° |
Cable length | 10 meter |
