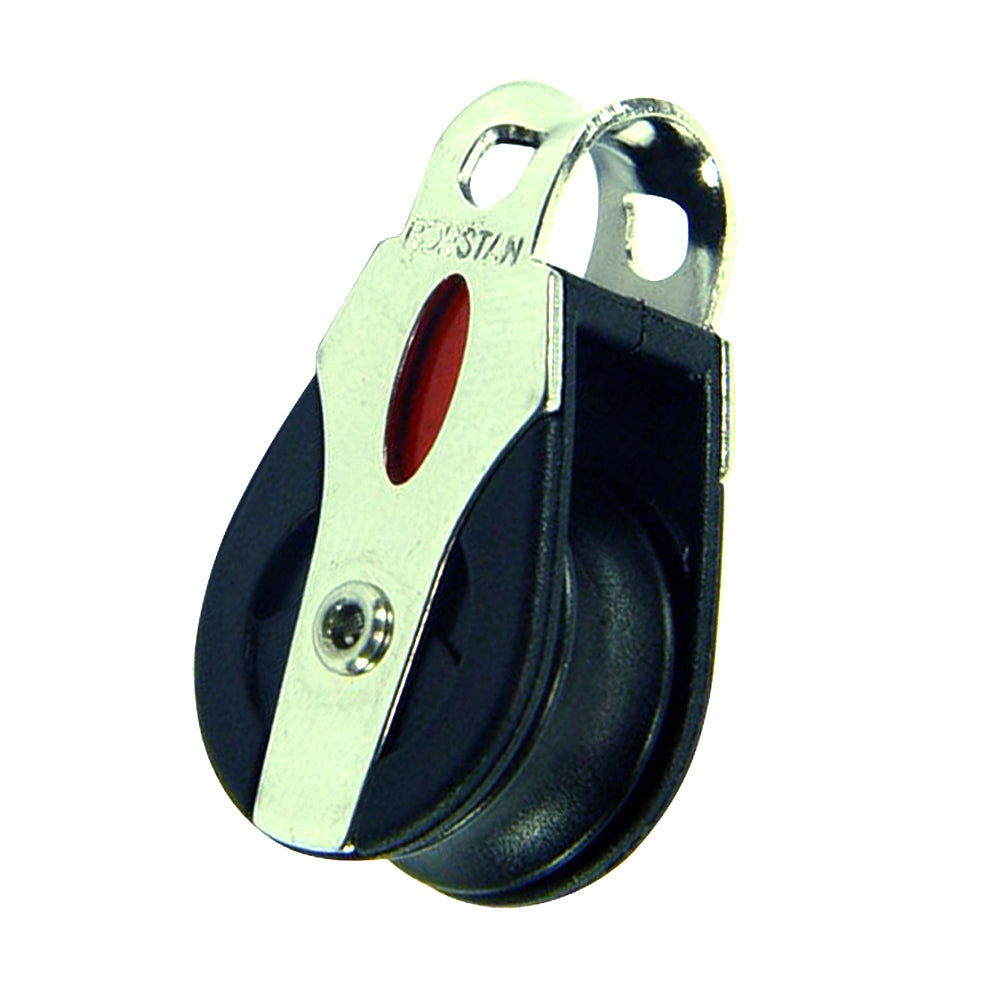

Ronstan Series 20 Ball Bearing Block - Single - Loop Top

Series 20 Ball Bearing Block - Single - Loop Top

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Can be fitted with a shackle in either of two planes to allow correct alignment of the block

Applications:

• Dinghy control lines

• Dinghy Vangs

• Cunninghams

• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves

• Stainless steel ball bearings

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

=Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 250kg(550lbs)
B. L.: 550kg(1,210lbs)
Weight: 16g(0.6oz)

Broshure

https://productimageserver.com/literature/brochure/55132BR.pdf

Brand: Ronstan

UPC: 9316800255528

Harmonization Code: 8483.50.90.40

Model Number: RF20101

Weight: 0.1

Length: 2

Height: 1

Width: 1
