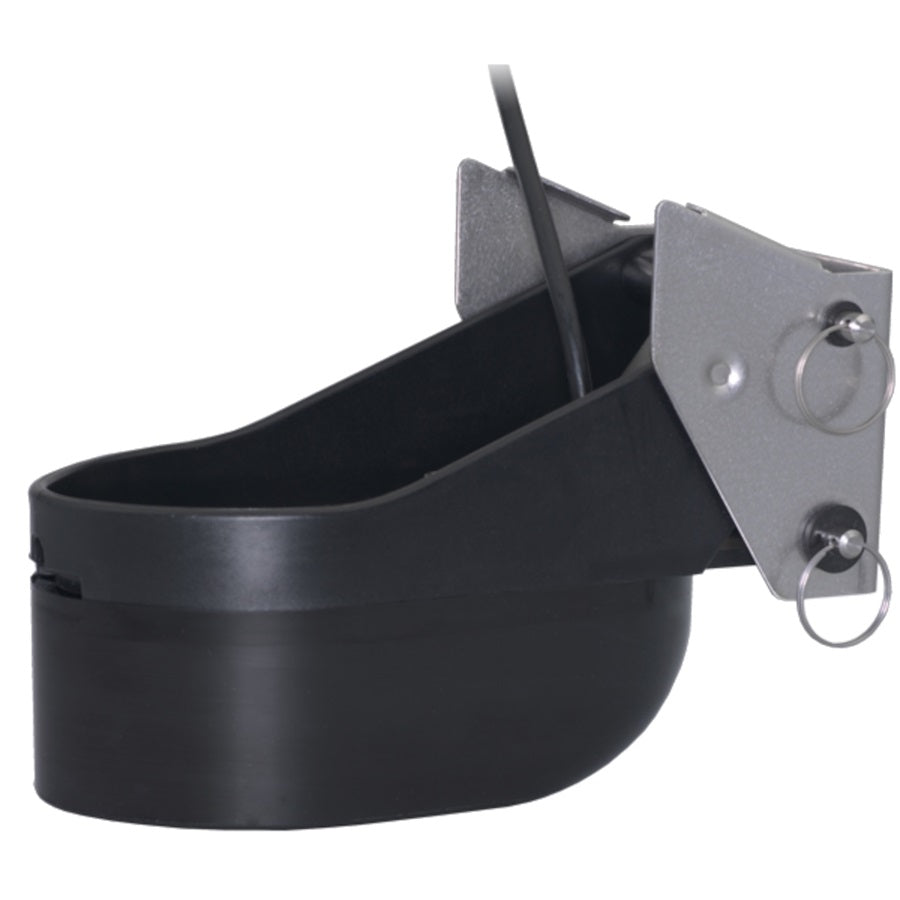

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80804

• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Stainless steel bracket for installation on outboard or inboard/outboard powered boats
• Recommended for use on planing and displacement hulls
• SEALCAST™, seamless, urethane housing for long life in the water
• Also available as thru-hull Tilted™ Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
• Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

Specifications

Power Rating	1 kW
Transom Angle	3° to 21°
Functions	Depth, Temperature
Max Vessel LOA	Up to 10 m (33')
Acoustic Window	Urethane
Common Use	Leisure/Yachting, Fishing
Freq Hi Wide	150-250 kHz
High-Wide Beamwidth	25°
Housing	Urethane/Stainless Bracket
Hull Material	Compatible w/ all hull materials
Max Depth	150 m (500')
Mounting Style	Transom
Retractable housing	No
Single or Dual Frequency	CHIRP-Ready Single-Band
Tilted Element	No
Weight:	4.2 kg (9.2 lb.)
