Raymarine

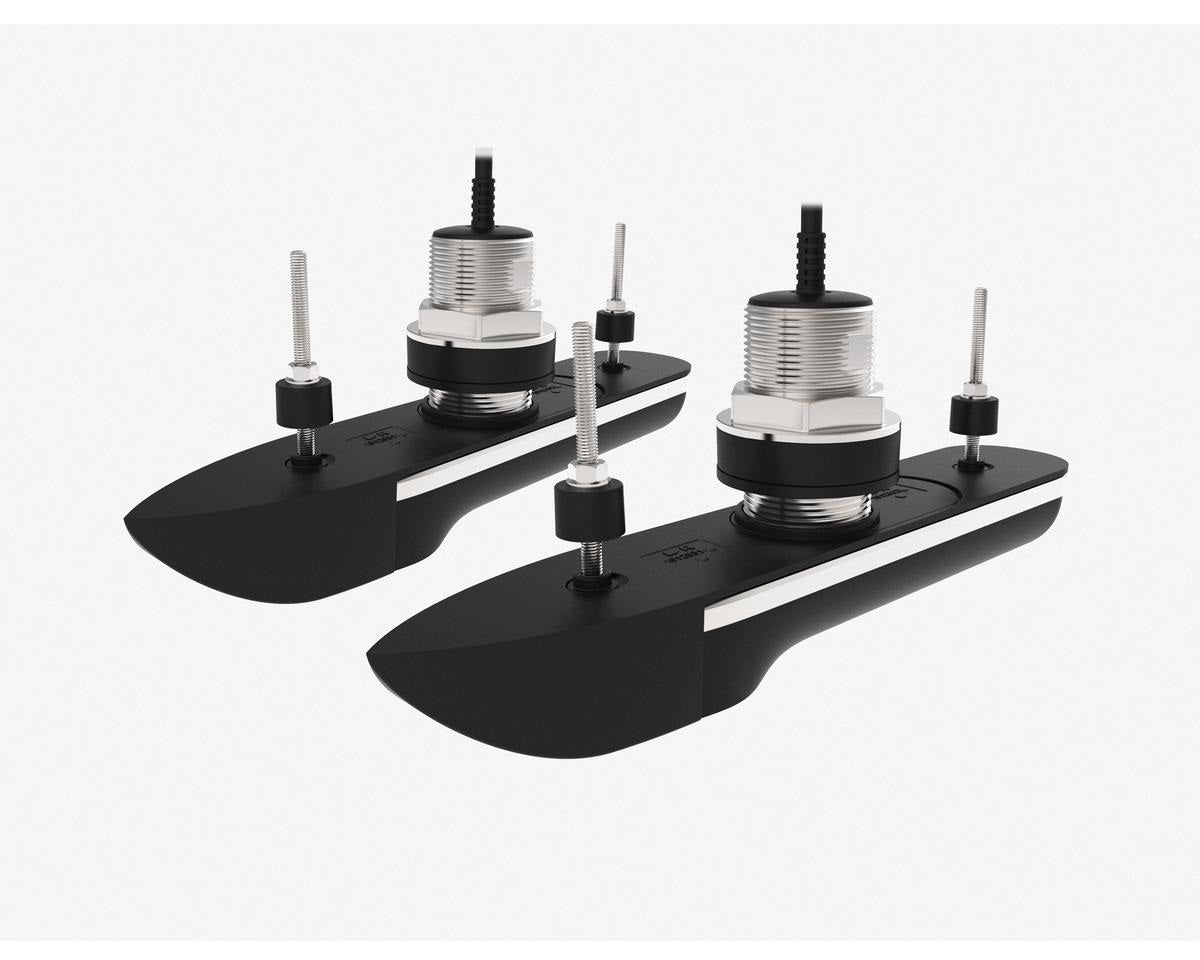

Raymarine Rvm-412 Thru-hull Pair Stainless Steel 12d

Raymarine Rvm-412 Thru-hull Pair Stainless Steel 12d

Regular price $2,499.99
Regular price Sale price $2,499.99
Sale Sold out

Raymarine RVM-412 Transducer Pair 12 deg Offset

Model: T70543
  • 12° Offset
  • Stainless Steel
  • Through Hull Mount
  • RealVision MAX
  • 8-Meter Extension Cable
  • 2 Meter y-Cable

RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters

The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.

The RVM-412 is a port and starboard transducer pair designed for boats with 5° to 15° of deadrise. Each transducer element is tilted at 12° to compensate for the hull deadrise.

The RVM-412 transducer pair feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.

Specifications
Cable length 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft)
Dimensions (including high speed nose cone) Length: 424.69 mm (16.72 in), Width: 79.64 mm (3.14 in)

What's in the Box:
  • RVM-412 Port Transducer
  • RVM-412 Starboard transducer
  • y-Cable
  • 8 Meter Extension Cable
