Raymarine

Raymarine I50 Tridata Display

Raymarine I50 Tridata Display

Regular price $549.99
Regular price Sale price $549.99
Sale Sold out

Raymarine i50 Instrument Displays



Dedicated Speed, Depth and Tridata for power and sail applications!

The new i50 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and rigit inflatables.

Excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features
  • Large numerals and digits
  • Red backlighting for improved visibility
  • SeaTalk and SeaTalkng interfaces
  • NMEA2000 (compatible) interface
  • Built-in transducer interface
  • 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
  • Large controls for ease of use at sea
  • Low power consumption
  • Multiple data source support eliminates potential data conflicts
  • Front mounted design for simple installation

Get the complete new look!



Looks great with i60

Sailors will love the new i60 Wind and i60 Close Hauled Wind displays. They look great mounted with the i50 displays.

Looks great with new cSeries and new eSeries MFDs

The new i50 instruments compliment the new c and e Series MFDs to give you a great looking dash.

Raymarine i50 Instrument Displays

Raymarine i50 Speed Instrument Display
  • Speed through water
  • Speed over ground (GPS required)
  • Sea surface temperature
  • Trip and Log data
Raymarine i50 Depth Instrument Display
  • Easy-view large digits plus depth trend indicator.
  • Min/max depth.
  • Audible shallow, anchor and deep water alarms.

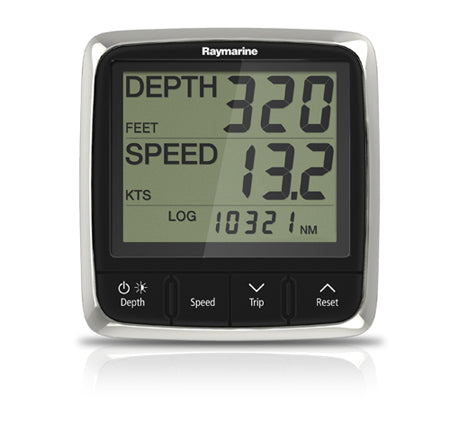

Raymarine i50 Tridata Instrument Display
  • Combines depth and speed data in an easy-to-read 3-line display.
  • Dedicated depth and speed displays with trip/log, sea temperature and SOG.
Models:

i50 Speed

i50 Depth

i50 Tridata

E70058

E70059

E70060



Nominal Voltage 12V DC
Operating Voltage

Range

10 - 16V DC
Power Consumption typically <1W (display only) and 200mA maximum with transducer connected
Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature range -20°C to +55°C
Storage Temperature -30°C to +70°C
Relative Humidity up to 93%
Waterproofing standard IPX6
Connections 2 x SeaTalkng and transducers
Conformance Europe 2004/108/EC
