Raymarine

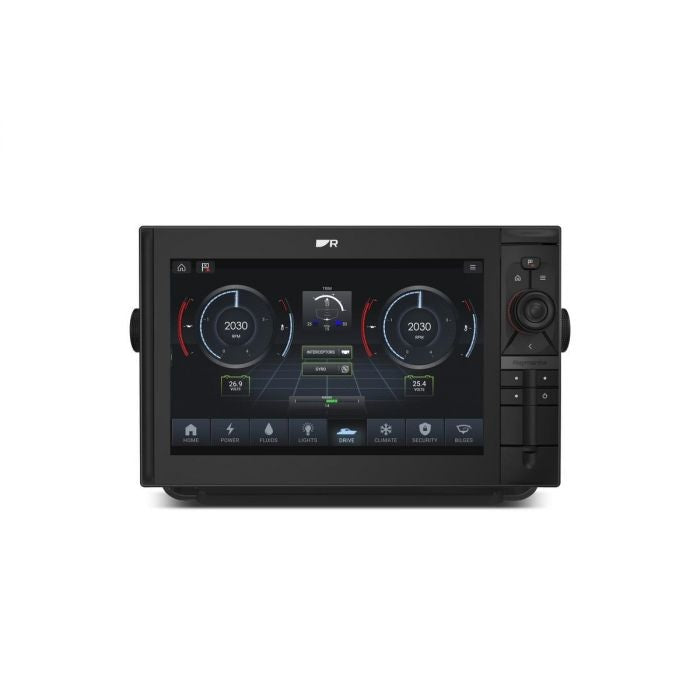

Raymarine Axiom2 Pro 12s Mfd No Transducer Lighthouse North America Chart

Raymarine Axiom2 Pro 12s Mfd No Transducer Lighthouse North America Chart

Regular price $3,949.99
Regular price Sale price $3,949.99
Sale Sold out

Raymarine Axiom2 Pro 12S HybridTouch chartplotter with single channel CHIRP sonar and Lighthouse North America Chart

Model: E70655-00-102

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

Specifications
Physical
Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)
Connections
Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection DeviceNet connector
Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth v4.0
Accessory connection USB Micro B
Internal storage 64GB Solid State
External storage 2 front mounted MicroSDXC card slots
Digital Video and Audio HDMI Out Micro connector type D
Analog video connections BNC Analog video input (on power cable)
Analog audio connections RCA connectors via power cable
External GPS anternna TNC connector
Power
Power consumption @ 12 V dc 29.88 W
Power consumption @ 24 V dc 28.8 W
Operating voltage range 8 V dc to 32 V dc
Nominal supply voltage 12 V dc / 24 V dc
Off current @ 12 V dc 11 mA (0.13 W)
Off current @ 24 V dc 18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number) 1
Current 5A
Fuse rating 15A
GPS (GNSS)
Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels Track up to 28 satellites simultaneously
GNSS compatibility GPS, Galileo, GLONASS, Beidou
Refresh rate 10 Hz (10 times per second)
ENVIRONMENTAL
Operating temperature -25°C to +55°C (-13°F to 131°F)
Waterproof rating IPx6, IPx7
Display
Size (diagonal) 12.1""
Resolution 1280 x 800 WXGA
Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88°
Type IPS (In-Plane Switching)
Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination 1200 nits / 1200 cd/m2

What's in the Box:
  • Axiom2 Pro 12S
  • Suncover
  • Gasket
  • Trunnion knobs (x 2)
  • Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
  • Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
  • DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
  • RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
  • Mounting fixings x4
  • Documentation
  • Power/Video/Audio cable 1.5 m (4.92 ft)
  • Lighthouse North America Chart
