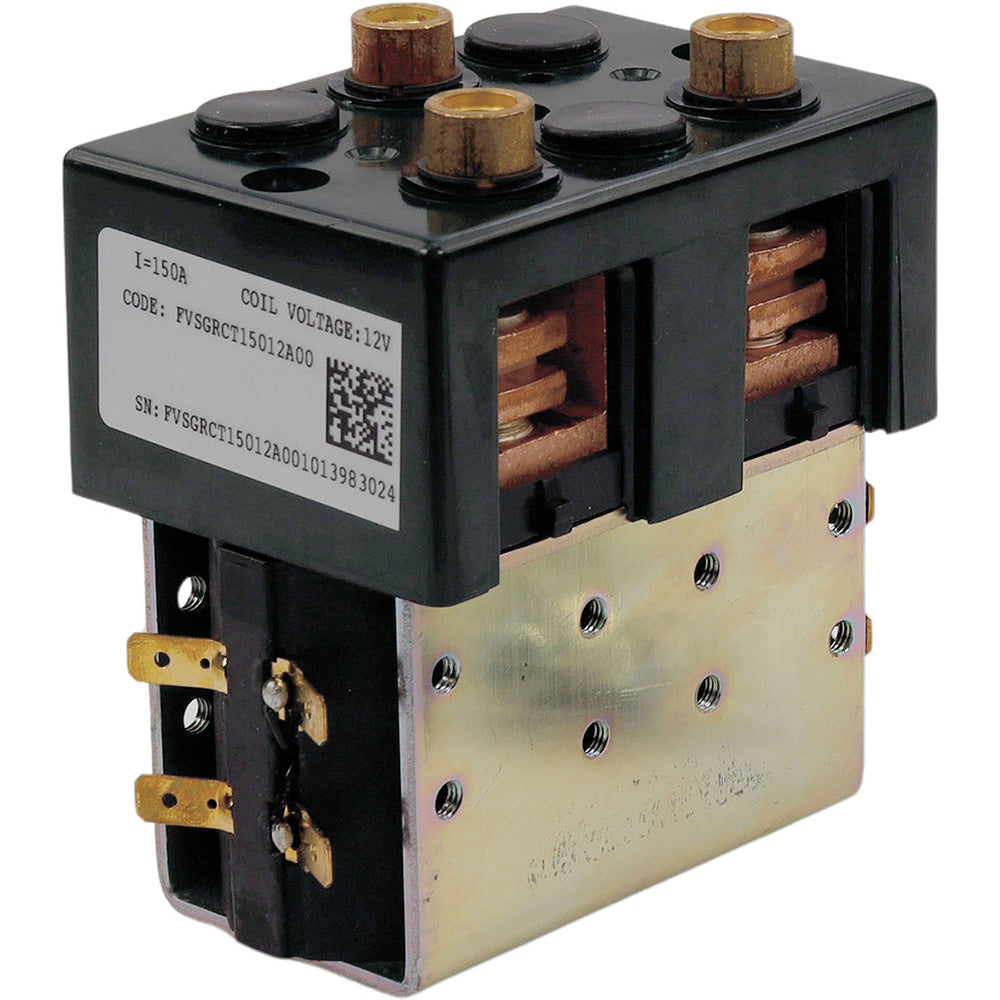

Quick Solenoid Box Kit - 150A - 12V

Solenoid Box Kit - 150A - 12V

Single-direction solenoid box kit, designed primarily for Quick BTQ series bow and stern thrusters.

Specifications:

• Voltage & Amperage: 12V DC / 150 Amps
• Contactor Type: Single pole, single throw (non-reversing)
• Ingress Protection: IP66 waterproof casing (excluding exposed terminals)
• Motor Capacity: Handles thruster motors up to 3.3 kW

Direct replacement for the following Quick BTQ thruster models: BTQ 125-30 / BTQ 125-40, BTQ 185-55 / BTQ 185-65 / BTQ 185-75 / BTQ 185-85

While optimized for bow thrusters, these heavy-duty solenoids are also suited to single-direction electrical marine components including:

• Anchor windlasses
• Electric capstans
• High-current winch motors

Brand: Quick

UPC: 8057090079364

Harmonization Code: 8511.90.6040

Model Number: FVSGRCT15012A00

Weight: 3.9

Length: 7

Height: 4

Width: 7
