Newmar

Newmar Bb-2/8 Buss Bar

Newmar Bb-2/8 Buss Bar

Regular price $104.00
Regular price Sale price $104.00
Sale Sold out
  • Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals.
  • One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals.
  • All bus material is nickel-plated copper.
  • A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
  • The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.

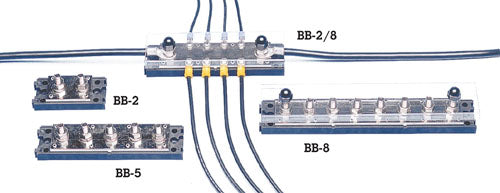

Model Qty. of 5/16"" Studs Base Size
BB-2 2 3 1/16"" x 1 1/2""
BB-2/8 2 plus 8 - #8 screws 6 1/16"" x 1 1/2""
BB-5 5 6 1/16"" x 1 1/2""
BB-8 8 9 1/16"" x 1 1/2""
