Maxwell

Maxwell Rc8-8 Vertical 12v Windlass For 5/16"" Chain & 5/8"" Line

Maxwell Rc8-8 Vertical 12v Windlass For 5/16"" Chain & 5/8"" Line

Regular price $2,431.00
Regular price Sale price $2,431.00
Sale Sold out

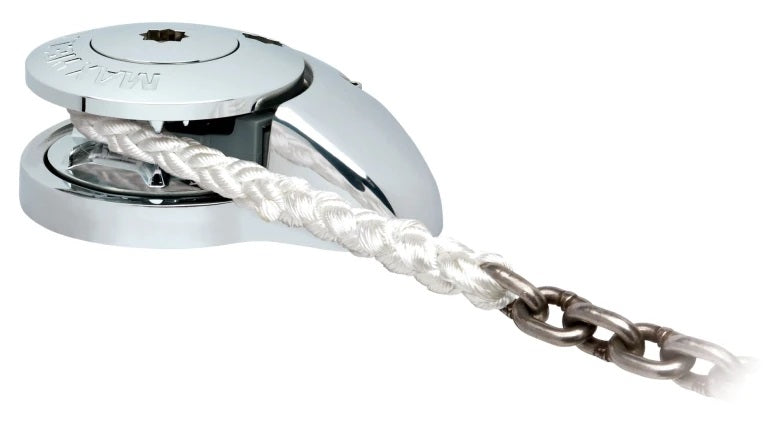

Maxwell RC8-8 Vertical Windlass for 8mm, for 5/16"" Chain & 5/8"" Line 12v

Model: RC8812V

The powerful RC8-8 fully automatic rope/chain windlass can be used with 8 mm (5/16"") chain spliced to 14 mm three strand or 8-plait rope. The ingenious Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series. Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations. The RC8 features Maxwell's revolutionary and patented, new Wave Design™ chainwheel. The heavy duty stainless steel (AISI 316) pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel preloaded, the pressure arm always exerts maximum control pressure. The RC8 works just as effectively with all-chain rodes. Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker. Full disassembly capability of the topworks utilizing only the handle provided and an Allen key. Manual override and 'Free Fall', using the emergency crank/clutch handle provided. Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel. Every Maxwell RC8 automatic rope/chain windlass comes with top works, motor/gear box and dual direction solenoid. Switches and circuit breaker are available and need to be ordered separately. Every Maxwell automatic rope/chain windlass is available with all the necessary components for fully automatic dual direction control in a competitively priced package. This windlass is also available in a version with extra deck clearance. Contact your dealer for more information. Important: Maxwell windlasses must be used in conjunction with a chain stopper and/or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Specifications
Rope/chain Yes
Drum No
Motor (W) 1000
Maximum pull/lift (kg) 600
Chain short link 8mm 5/16""
Chain 6-7mm, 1/4""
Rope 14-16mm 5/8
Weight (kg) 8
Vertical/Horizontal Vertical
Voltage (V) 12vDC

What's in the Box:
  • RC8-8 12v Windlass
  • Breaker panel
  • Reversing solenoid
  • Up/Down panel switch
  • Clutch release handle
