Maxwell

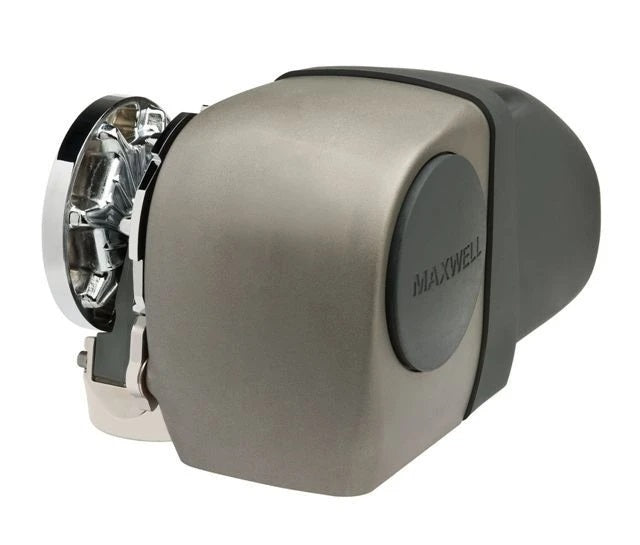

Maxwell Hrc10-8 Free Fall 12v Horizontal Windlass For 5/16"" Chain & 9/16"" Line

Maxwell Hrc10-8 Free Fall 12v Horizontal Windlass For 5/16"" Chain & 9/16"" Line

Regular price $3,599.00
Regular price Sale price $3,599.00
Sale Sold out

Maxwell HRC10-8 12V Horizontal Windlass for 5/16"" Chain an 9/16"" Line

Model: HRC10812V

The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8 mm (5/16") and 10 mm (3/8") short link chain and 14 mm (9/16") and 16 mm (5/8") three strand or 8-brait (plait) rope.

Specifications
Drum No
Motor (W) 1000
Maximum pull/lift (kg) 700
Chain short link (mm) 8mm
Rope 14-16mm, 9/16"" - 3/8""
Voltage (V) 12vDC

What's in the Box:
  • HRC10-8 Windlass
  • Circuit Breaker
  • Reversing Solenoid 12v
  • Up/Down Switch Panel
  • Clutch Release Handle
