Mastervolt Dc Master 24/12-12a 24vdc To 13.6 Vdc - 12a

Mastervolt Dc Master 24/12-12a 24vdc To 13.6 Vdc - 12a

Regular price $132.89
Regular price Sale price $132.89
Sale Sold out

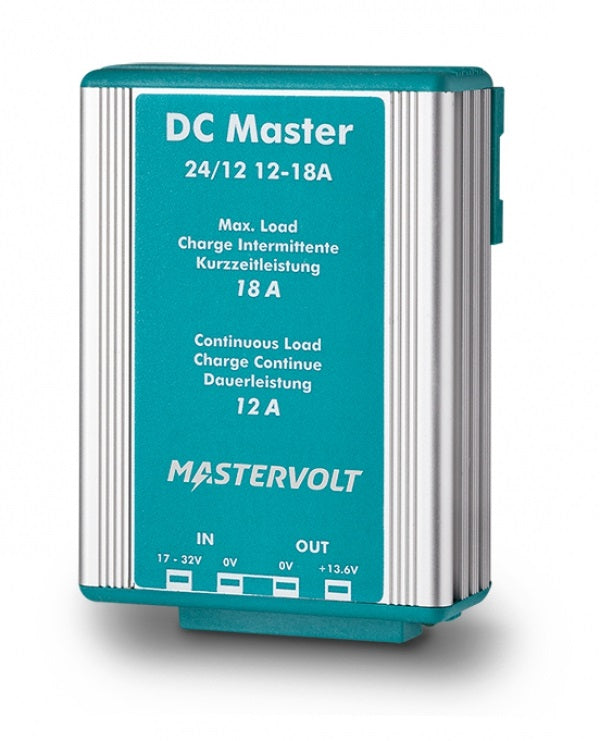

Mastervolt DC master 24/12-12A DC-DC Converter, Non-Isolated

Model: 81400300
  • Recreational and semi-professional use.
  • Easy to install using included mounting bracket, screws and fasteners.
  • Smart electronics mean no unnecessary heat generation.
  • Continuous output.
  • Two minutes of extra power for short power boosts.
General Specifications
Nominal output voltage 13.6 V
Max. output power 245W
Nominal output power 164W
Max. output current (for 2 min. intervals) 18A
Continuous output current 12A
Nominal input voltage 24V
Input voltage range 20-32V
Galvanic isolation No
Stabilised Yes
Approvals CE, E-mark
Technical Specification
DC consumption < 10 mA
Connections Fast-on
Temperature range (ambient temp.) -13 °F to 176 °F
Sound level < 30 dBA at 1 mtr
Protection degree IP53
Cooling Natural cooling
Dimensions 5.0 x 3.4 x 2.0 inch

What's in the Box:
  • DC Master 24/12-12A Non isolated
  • Mounting bracket with fastenrs
  • Documentation
