Mastervolt Chargemaster 12a 24v Output 120/230v Input

Mastervolt Chargemaster 12a 24v Output 120/230v Input

Regular price $650.79
Regular price Sale price $650.79
Sale Sold out

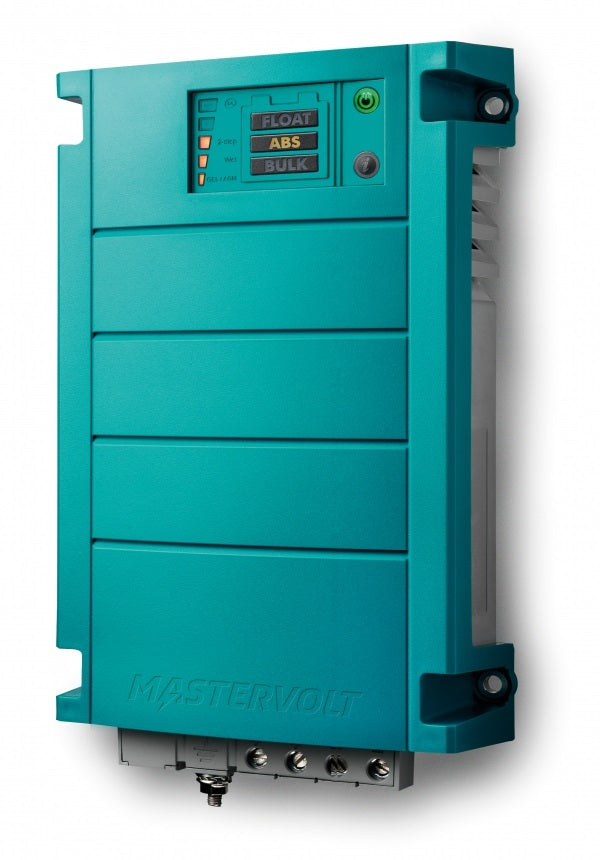

Mastervolt ChargeMaster 24/12-3 Battery Charger

Model: 44020120
  • 3-Step+ charging technology for fast and complete charging.
  • Safe and complete charging due to standard safety features.
  • Memory function prevents overcharging in case of an unstable power supply.
  • Clear control panel.
  • Easy to install
  • Built-in system functionality (MasterBus) in combination with other Mastervolt products

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

General Specifications
Total charge current 12A
Number of battery outlets 3
Nominal output voltage 24V
Charge current second output 12A
Charge current third output 12A
Battery capacity range 24-120aH
Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
AC connection 2 mtr AC cable
Power supply mode yes
Display/read-out LED display
Technical specifications
Charge characteristic IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 28.8V
Charge voltage Absorption 28.5V
Absorption time 4 hours
Charge voltage Float (wet batteries) 26.5V
Charge voltage Float (gel/AGM batteries) 27.6V
Voltage compensation Automatic
Power consumption (DC side) < 2 mA
Full load consumption (230 V AC) 435W
Current Control function No
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 °F to 140 °F
Protection degree IP23
Cooling vario fan
MasterBus compatible Yes
Dimensions 9.2 x 5.2 x 2.4 inch

What's in the Box:
  • ChargeMaster 24/12-3
  • DC-wiring: 2 pcs. positive (red) and 1 pc. negative (black)
  • MasterBus terminating device
  • Documentation
  • Battery temperature sensor
