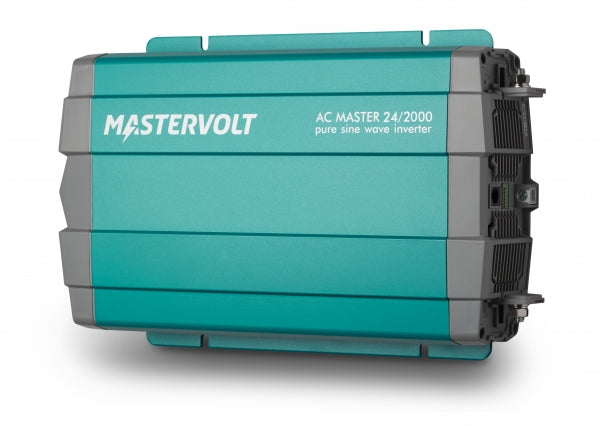

Mastervolt Ac Master 24/2000 Inverter, 24v Input 120v 2000 Watt Output

Mastervolt Ac Master 24/2000 Inverter, 24v Input 120v 2000 Watt Output

Regular price $1,024.77
Regular price Sale price $1,024.77
Sale Sold out

Mastervolt AC Master 24/2000 V) Inverter

Model: 28522000
  • Pure sine wave technology protects sensitive equipment.
  • Delivers full output at high peak power under the most demanding conditions.
  • Automatic power saving system for extended runtime.
  • Compact and lightweight design, saving valuable installation time.
  • Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
  • Variable speed fan for quiet operation at low power.
  • Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
  • Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 24V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

General specifications
Output voltage 100/110/115/120 V — 50/60 Hz (selectable)
Output waveform true sine
Nominal battery voltage 24V
Recommended battery capacity ≥ 110 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 2000 W
Continuous power at 40 °C / 104 °F, cos phi 1 2000 W
Peak load (1 min.) < 2300 W
Peak load (1 s) < 3500 W
AC connection North American socket with GFCI
Galvanic isolation Yes
Efficiency 93 %
Display/read-out LED indication: battery voltage, load level, status
Alarms potential free alarm contact
Dimensions, hxwxd 9.8 x 17.4 x 3.3 inch
Weight 11.5 lb
Technical specifications
Technology high frequency, input & output fully isolated
Low battery voltage, switches off at 21v
Low battery voltage, switches on at 25v
High battery voltage, switches off at 33v
High battery voltage, switches on at 29v
Input current (nominal load) 100A
No-load power consumption (ON mode) < 1.0 A
No-load power consumption (energy saving mode) < 0.05 A
Minimal DC fuse (slow blow) 125 A
Minimal cable size 35 mm2
Harmonic distortion typical < 5 %
Cos phi all power factors allowed
Temperature range (ambient temp.) -4 °F to 140 °F
Cooling temperature and load controlled fan
Protection degree IP21, horizontal wall mounting
Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible yes, using a MasterBus AC Master Interface
