Maretron
Maretron M2ar Fuel Flow Sensor 6.6 To 132 Gph
Maretron M2ar Fuel Flow Sensor 6.6 To 132 Gph
Regular price
$546.00
Regular price
Sale price
$546.00
Unit price
/
per

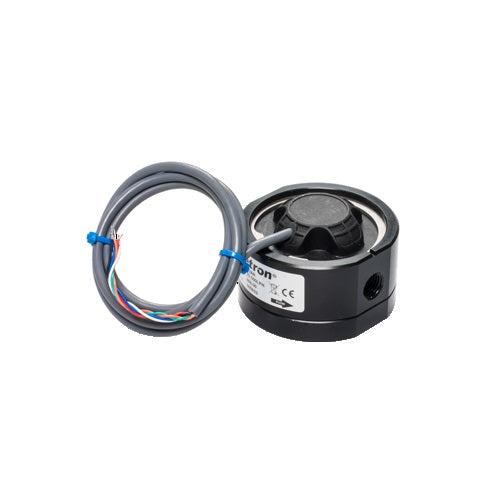

Maretron M2AR Fuel Flow Sensor
25 to 500 LPH (6.6 to 132 GPH)
Model: M2ARUPC: 873804003535
For use with Maretron FFM100 Fuel Flow Meter
SpecificationsOperating Temperature | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature | -65°C to 170°C (-85°F to 338°F) |
Port Size | 1/4"" NPT Female |
Accuracy % Reading | ±0.25% (With K factor on sensor entered into FFM100) |
Maximum Viscosity | 1000 cPs |
Maximum Operating Pressure | 68.95 Bar (1000 PSI) |
Strainer Size | 200 Mesh (If not already installed after fuel filter) |
Cable Length | 1m (3.28 ft) |
Weight | 1.66lbs |
Dimensions | 2.91"" x 2.80"" x 1.91"" |
