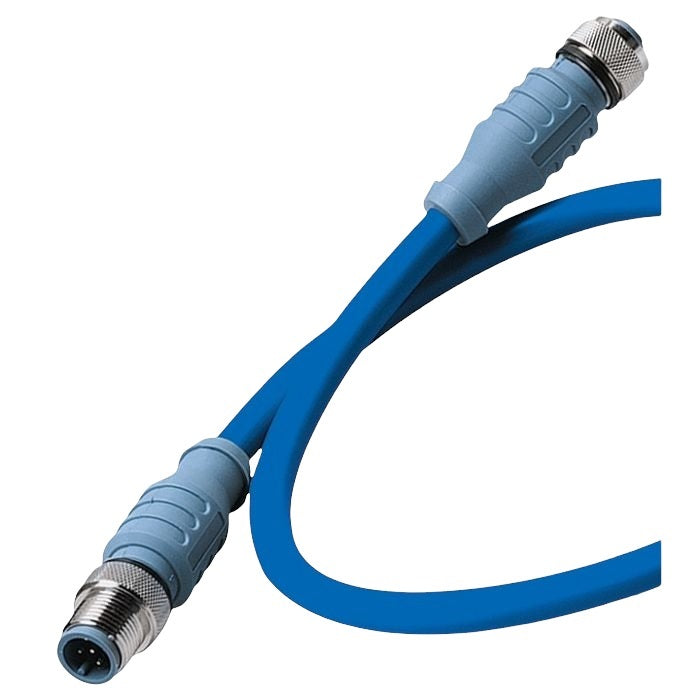

Maretron Blue Mid Cable 4m Male To Female Connector
Maretron Blue Mid Cable 4m Male To Female Connector
Regular price
$39.40
Regular price
Sale price
$39.40
Unit price
/
per
Maretron Blue Mid 4 Meter Cable
Model: DM-DB1-DF-04.0UPC: 873804001937
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
SpecificationsMechanical | |
Contact Carrier Mat/Color | Thermoplastic PUR/Blue |
Molded Body Mat/Color | Thermoplastic PUR/Blue |
Contact Mat/Plating | Brass/Gold |
Coupling Nut Mat/Plating | Brass/Nickel |
Connector Outside Diameter | 0.59 in |
Electrical | |
Current rating | 4.0 Amps |
Voltage rating1 | 250v |
Cable | |
Outer Jacket Mat/Color | PVC/Blue |
Conductor Insulation Material | PE (data pair), PVC (power pair) |
Number of Conductors | 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire |
Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
Enviromental | |
Protection class | IEC IP68, NEMA 1,3,4,6P |
Temperature rating | -40°C to 80°C to (-40°F to 176°F) |
Approvals | |
(Cable) UL | PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V |
(Cable) CSA | CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4 |
NMEA | NMEA 2000® Approved |
IEC | IEC 61162-3 |
