Lowrance

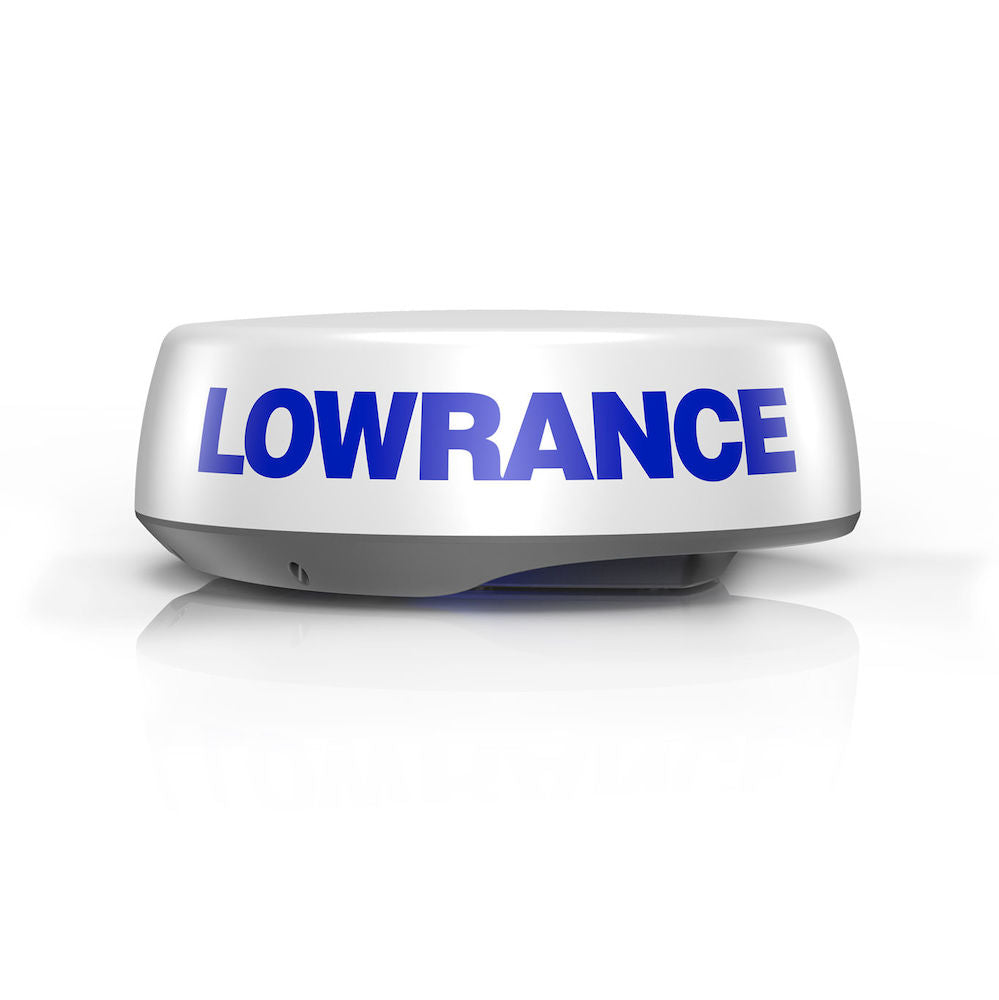

Lowrance Halo 24 Radar Dome

Lowrance Halo 24 Radar Dome

Regular price $3,099.00
Regular price Sale price $3,099.00
Sale Sold out

Lowrance Halo 24 Radar Dome

Model: 00014541001
  • 48 nm range from a compact 24-inch dome
  • Advanced pulse compression technology with beam sharpening
  • Simultaneous Dual Range operation sees both near and far
  • Ultra-fast 60 RPM operation at ranges up to 2nm
  • VelocityTrack™ Doppler technology for collision avoidance
  • Easy operation with harbour, offshore, weather, and bird modes
  • MARPA target tracking (up to 10 targets, 20 in dual range).
  • Ready instantly from standby
  • All new lightweight, low profile dome design, with integrated LED lights

Lowrance HALO 24"" Pulse compression dome radar, with industry-first 60 RPM operation. Built in VelocityTrack™ Doppler technology, simultaneous short and long-range coverage up to 48 nautical miles from one compact 24-inch dome antenna.

HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna

HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings

VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.

Specifications
Operating Temperature -25° to +55°C (-13° to +130°F)
Relative humidity +35° C (95° F), 95% RH
Waterproof IPX6
Max relative wind velocity 51 m/sec (100 Knots)
Complience CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002
Power consumption (with 10m cable) Operating: 14.5 to 27W at 13.8 V
Standby 3.9 W (Typ.) at 13.8 V DC ~ 170 mA
DC input (at end of radar cable) 9 V to 31.2 V DC (12/24 V systems)
Reverse polarity protection Yes
Minimum startup voltage 10.75 V DC
Transmitter source (pre-heating time) No magnetron — Instant On
Outside dimensions Diameter 610 mm (24"), Height 225 mm (8.9")
Scanner weight (no cable) 6.75kg (14.9 lbs)
Radar ranges 100 m (328 ft) to 48nm with 18 range settings, (nm/sm/km)
Rotation (mode dependent) 20 - 60 rpm (mode and MFD dependent)
Transmitter frequency X-band - 9.4 to 9.5 Ghz
Transmitter source (warm-up time) No Magnetron — all solid state. Instant On
Plane of polarization Horizontal Polarization
Transmitter peak power output 25W
Minimum range 6 m (19.7 ft)
Sweep repetition frequency 700-2400 Hz (mode dependent)
Pulse length 0.04 - 64 usec
Sweep bandwidth 48 MHz max
Horizontal beam width (Tx and Rx antenna) 3.9° nominal (-3 dB width)
Target Seperation Control OFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal)
Vertical beam width (Tx and Rx antenna) 22° (-3B width nominal)
Side lobe level (Tx and Rx antenna) Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
Noise figure Less than 5 dB nominal
Protocol Ethernet 100 Base T
Maximum inter connecting cable length 30 m (98.5 ft) — available as option, use NEP-2 for longer cable runs
