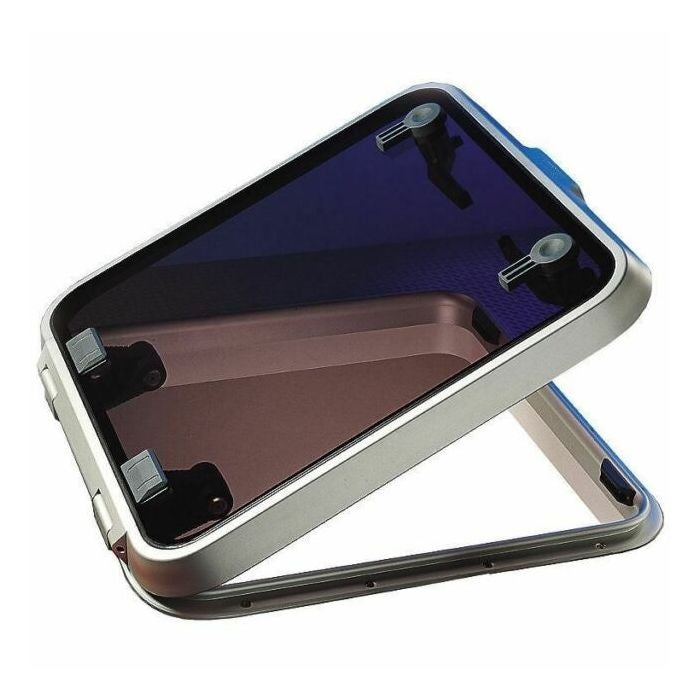

Lewmar Size 60 Ocean Series Hatch Flange Base

• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4").
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
1" Flange	Smoke Grey	17.6	1/2

Dimensions

Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Hinge Length HX (in)	Hinge Width HY (in)	Cut-Out Length Flat X1 (in)	Cut-Out Width Flat Y1 (in)	Cut-Out Radii Flat R1 (in)
22 5/8	22 5/8	1 11/16	3	3/16	14 7/16	19 15/16	19 15/16	1 11/16

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lewmar

UPC: 743683113062

Model Number: 39660070

Weight: 22.000000
