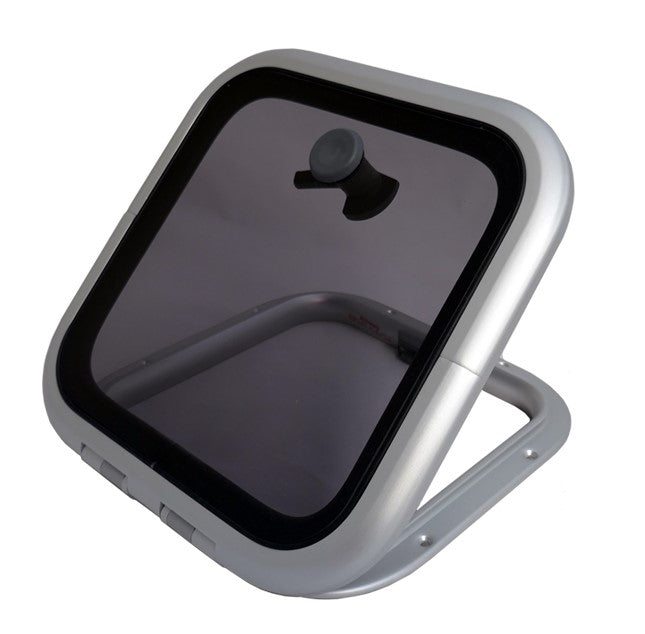

Lewmar Size 10 Low Profile Hatch Flange Base

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Grey	4.9	5/16

Dimensions

Length  (in)	Width (in)	Height (in)	Radii (in)	Cut-Out Length (in)	Cut-Out Width (in)	Cut-Out Radii (in)
13	13	1	2 7/8	10 1/4	10 1/4	1 11/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lewmar

UPC: 743683107047

Model Number: 39910030

Weight: 6.000000
