Lenco Marine

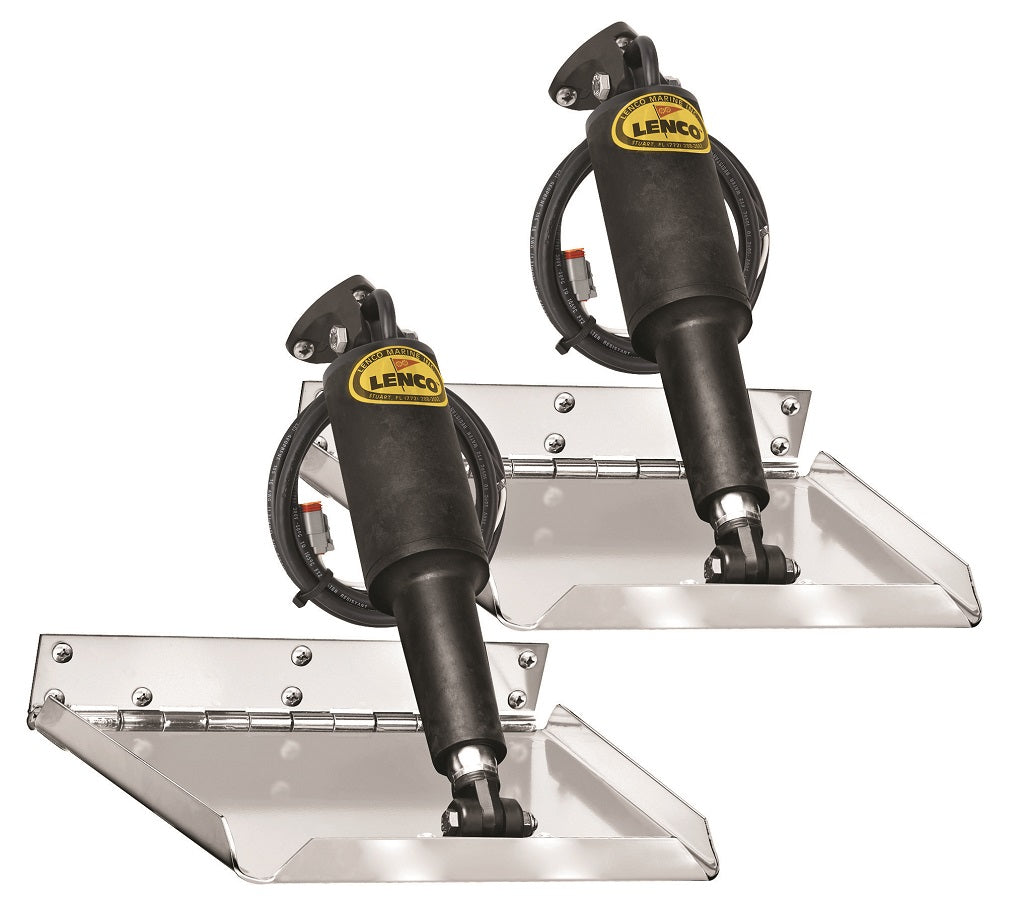

Lenco 12""x9"" Performance Trim Tab Kit 12v Requires Switch

Lenco 12""x9"" Performance Trim Tab Kit 12v Requires Switch

Regular price $1,009.69
Regular price Sale price $1,009.69
Sale Sold out

Lenco 12"" X 9"" Perfomance Trim Tab Kit - Requires Switch

Model: 15036-101

Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.

Specifications
Plane Size L x W 12"" x 9""
Boat length 16' - 26'
Hinge Height 2""
Min Transom Height 11""
Voltage 12vDC
Finish Electro-Polish

What's in the Box:
  • (2) 12-gauge stainless steel Electro-Polished blades
  • (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware
