KVH

Kvh Tracphone V3hts 14.5"" Vsat Requires Coaxial Cable X 2

Kvh Tracphone V3hts 14.5"" Vsat Requires Coaxial Cable X 2

Regular price $18,895.00
Regular price Sale price $18,895.00
Sale Sold out

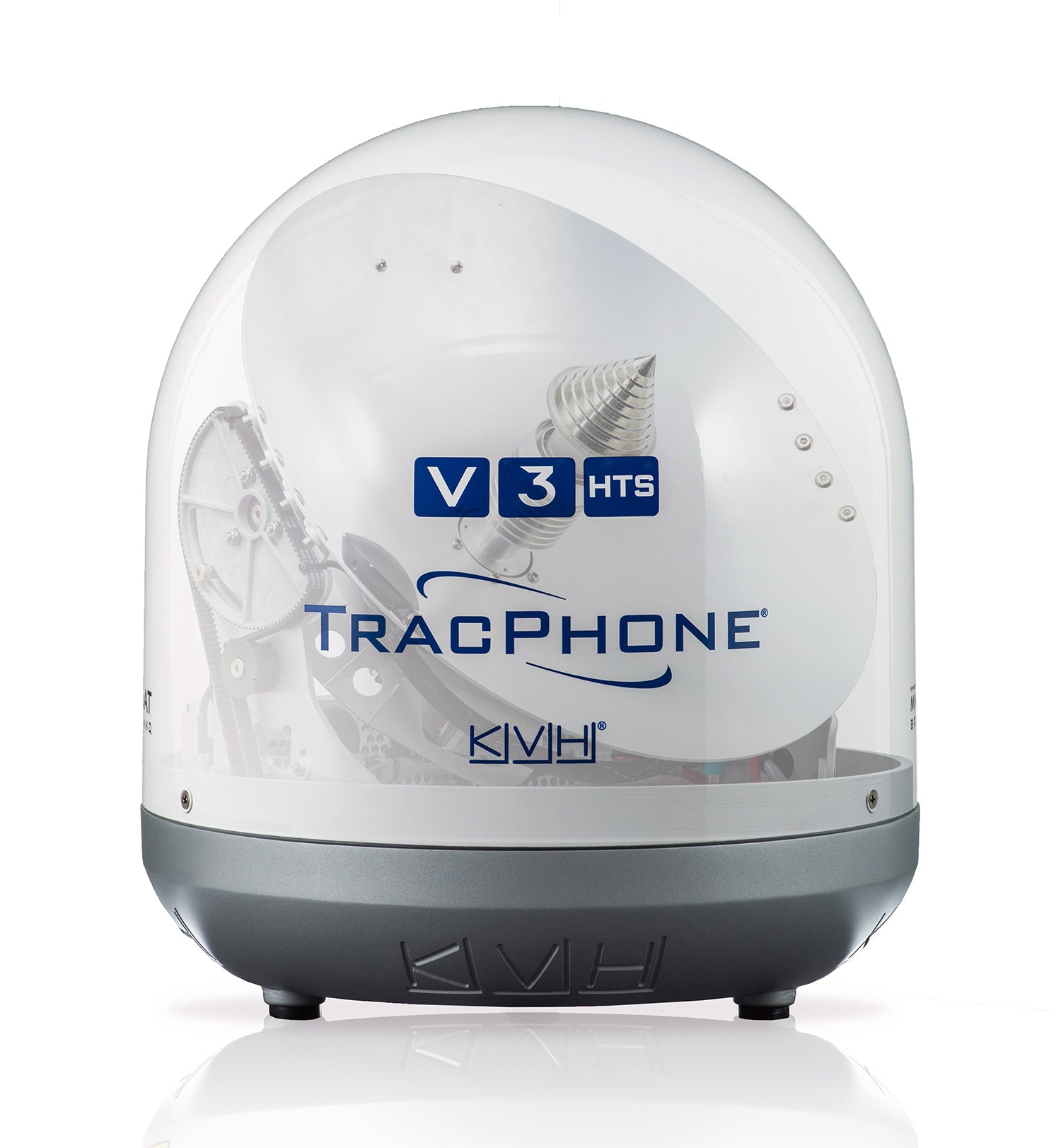

KVH TracPhone V3-HTS Mini-VSAT Broadband

Model: 01-0418-11
  • World’s fastest, lightest ultra-compact marine VSAT system with antenna measuring 37 cm that outperforms leading competing 60 — 85 cm Ku-band VSAT antennas
  • Rugged, ultra-compact, marine-grade system housed in dome measuring, 39.4 cm D x 44.7 cm h (15.5"" D x 17.6"" h) / 11.3 kg (25 lbs)
  • Data speeds as fast as 5 Mbps/2 Mbps (down/up)
  • Automatic fast switching among the network’s worldwide, redundant beams ensuring seamless and reliable communications wherever you travel
  • Global connectivity and crystal-clear voice calls via advanced next-generation Ku-band satellites on the mini-VSAT Broadband HTS network
  • Affordable metered airtime plans
  • Integrated CommBox Modem (ICM) includes everything required in one single box: modem, the network management software including least-cost routing, ethernet switches, Wi-Fi, and storage.
  • Vessel Tracking Service — Basic version included with 1-hour selection and 5 hours visibility of vessel position and track; Premium version also available
  • Advanced network-level firewall with automated threat management to provide additional security; plus, the antenna’s ICM includes the award-winning KVH Videotel™ "Cybersecurity at Sea" training program

The world’s fastest, lightest ultra-compact marine VSAT system

Get more out of your time on the water with the TracPhone V3-HTS, the ultra-compact VSAT system that delivers speeds up to 5 Mbps/2 Mbps (down/up)1. That’s faster than the leading, competing 60 cm VSAT systems and more than double the download speed and more that 15 times the upload speed of KVH’s TracPhone® V3-IP.

Using new, advanced next-generation satellites from Intelsat on the mini-VSAT Broadband HTS network, the TracPhone V3-HTS provides the same connectivity experience offshore as on land.

Specifications
Service provider mini-VSAT Broadband Airtime Service
Service KVH mini-VSAT Broadband HTS
Antenna Ku-band
Belowdecks Equipment Integrated CommBox Modem (ICM)
Service Coverage Area1 Seamless Worldwide Regions
Maximum Download Speed1 5 Mbps
Maximum Upload Speed1 2 Mbps
Billing Method Metered (M)
Antenna Dish Diameter 14.5""
Antenna Unit Diameter x Height/Weight 15.5"" (D) x 17.6"" (h) / 25 lbs
System Option: CommBox Software Bundles Available Standard or Enterprise Packages - see "Featured Options" on product page for details
System Option: Built-in Crew Calling Gateway Contact Airtime Services for details
System Option: IP-MobileCast Services N/A
1 Published data speeds are maximum speeds and may vary in different regions and under different conditions.
