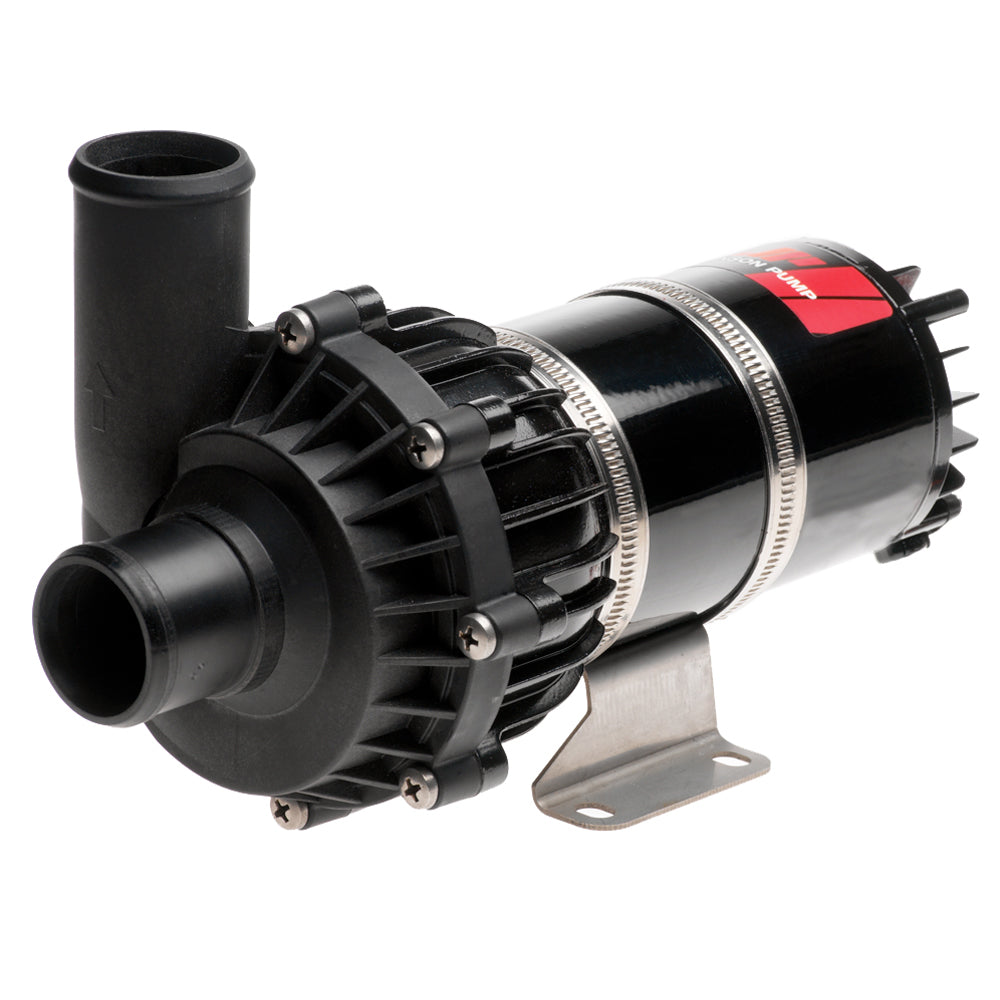

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
Regular price
$541.48
Regular price
$526.73
Sale price
$541.48
Unit price
per
Couldn't load pickup availability
CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
| Videos |
https://www.youtube.com/embed/OU-Z-l_WXRg |
Brand: Johnson Pump
UPC: 7330717012915
Harmonization Code: 8413.70.20.50
Model Number: 10-24664-09
Weight: 6.6
Length: 11
Height: 5
Width: 7
