Icom M510bb Black Box Vhf With Hm195gb Black

Icom M510bb Black Box Vhf With Hm195gb Black

Regular price $1,249.00
Regular price Sale price $1,249.00
Sale Sold out

icom M510BB Black Box VHF with HM195GB Black CommandMic

Model: M510 BB 21 USA

Icom’s M510BB is perfect for boats that need AIS receive functionality without taking up precious helm space. The supplied CommandMic™ provides all the safety and communication functions for commercial and leisure boaters.

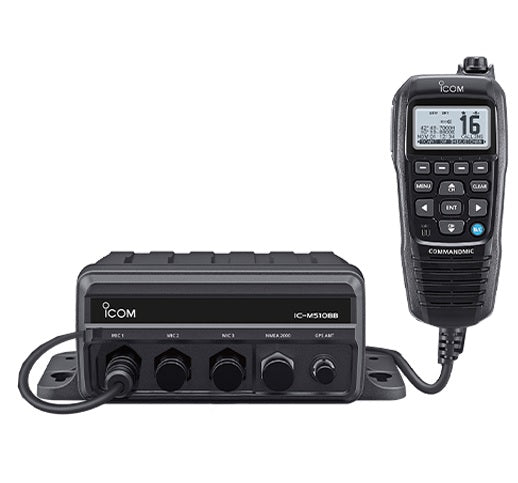

The M510BB consists of a CommandMic™ and black box RF unit. Use the CommandMic™ for all operations including DSC. Install the RF unit out of sight, place up to 60 ft (18.3 m)* away from the CommandMic™.

Add up to two additional CommandMic™ microphones for boats requiring two or three comms stations. Extend communication points around the boat including the cockpit, fly bridge, and tower. Access the intercom functions for one-to-all or one-to-one communications on the boat.

The M510BB includes an integrated AIS receiver, perfect for remote station information via the CommandMic™, or integrated into the NMEA 2000® bus to display radar and chart plotter information on an MFD (Multi-Function Display).

In addition to the conveniently located DSC button on the back of every CommandMic™, the M510BB introduces a dedicated DSC Remote Control (EN 300 338-8 compatible) terminal, allowing a connection to an external device to centralize emergency communications control.

The M510BB has a last call voice recording function automatically saves up to two minutes of an incoming call.

The NMEA 2000® network provides plug-and-play data communication to inter-connect other marine equipment such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the M510BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel. *MMSI number must be obtained and programmed for each vessel/radio.

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker to listen to radio traffic on the deck or tower. You can also sound foghorn patterns from the hailer speaker.

The Active Noise Cancelling function digitally removes background noise from transmitting and receiving audio to provide clear communications in noisy maritime environments.

Specifications
General
Usable channels USA, INT, CAN, WX channels
Power supply requirement 13.8 V DC nominal (11.7 ~ 15.9 V DC) (Negative ground)
Current drain (at 13.8 V DC) TX Max. power - 5.5 A Max.
RX Max. audio - 1.5 A (One CommandMic™) 4.5 A (Three CommandMic™ and RX hailer)
Operating temperature range —20°C ~ 60°C, —4°F ~ 140°F
Antenna impedance 50 ohm nominal
Weight (approx.) RF unit - 890 g; 2 lb
CommandMic™ - 400 g; 14.1 oz
Transmitter
Output power (at 13.8V DC) 25 W, 1 W (High, Low)
Max. frequency deviation ±5 kHz
Frequency tolerance ±0.5 kHz
Spurious emissions Less than —70 dBc (High power), Less than —56 dBc (Low power)
Residual modulation More than 40 dB
Adjacent channel power More than 70 dB
Receiver
Sensitivity FM (at 12dB SINAD) 0.22 µV typical
Sensitivity DSC (at 1% BER) —7 dBµ emf typical
Adjacent channel selectivity FM More than 70 dB
Adjacent channel selectivity DSC (1% BER) More than 73 dBµ emf
Spurious response FM More than 70 dB
Spurious response DSC (1% BER) More than 73 dBµ emf
Intermodulation FM More than 75 dB
Intermodulation DSC (1% BER) More than 68 dBµ emf
Hum and noise More than 40 dB

What's in the Box:
  • IC-M510BB
  • DC power cable (2 m)
  • Microphone Hanger
  • Connection cable, OPC-1540 (6.1 m, 20 ft)
  • CommandMic™, HM-195GB
  • Connector cap
  • Mounting base
