Humminbird
Humminbird Xtm-9-hw-mdi-75-t Transducer W/temp
Humminbird Xtm-9-hw-mdi-75-t Transducer W/temp
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
/
per

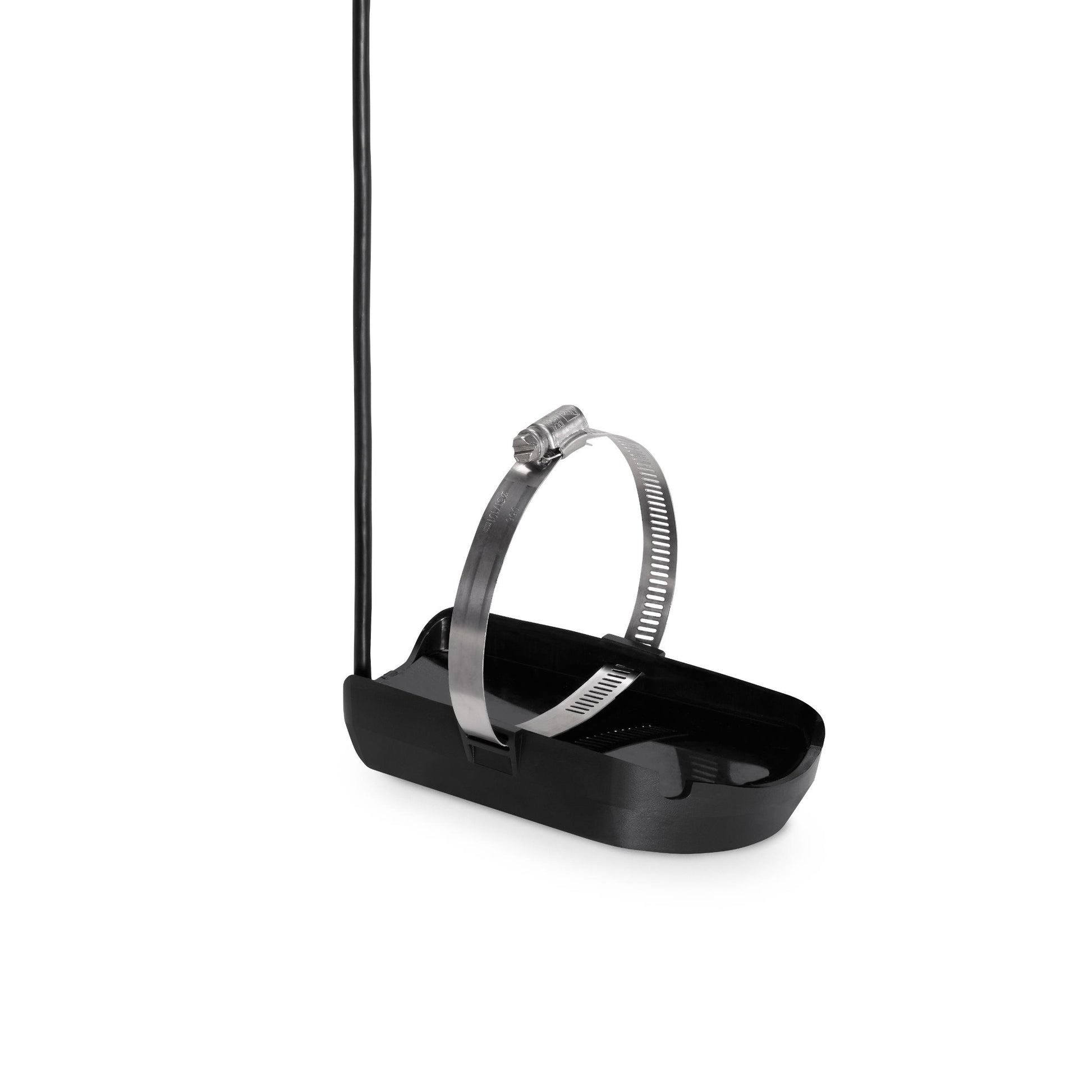

Humminbird XTM 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer
Model: 710296-1- This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)
MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.
SpecificationsMount Type | Trolling Motor |
Sonar Type | MEGA Imaging, Dual Spectrum |
Current Models | HELIX 7, HELIX 8 |
