Humminbird

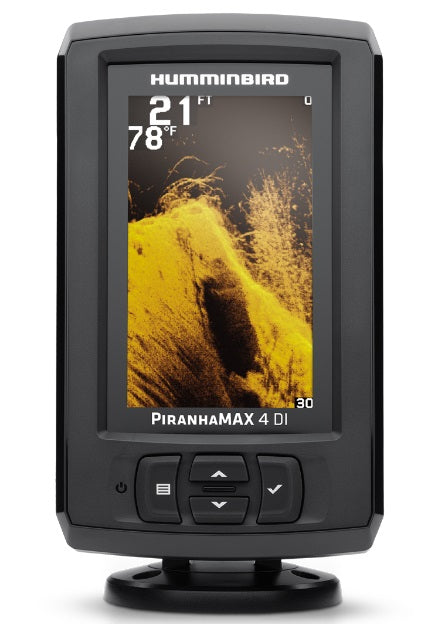

Humminbird Piranhamax 4 DI

Humminbird Piranhamax 4 DI

$189.99
$189.99 $189.99
Sale Sold out

Humminbird Piranhamax 4DI

Model: 410160-1
UPC: 082324048739
  • Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.

The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Down Imaging sonar.

Specifications
Display Size 4.3 in
Display pixel matrix 480 x 272
Display type Color TFT
Display colors grayscale 256 Colors
Standard sonar Down Imaging/Dual Beam
Standard sonar coverage 28°, 16° & 75° @ -10db
Standard sonar frequency 200/455/455 kHz
Target separation 2.5 in
Power output RMS 300 watts
Power output peak to peak 2400 watts
Depth capability 600 ft
Temperature Built-in transducer
Speed No
Backlight Yes
Input Voltage 10.8-20 VDC
Input Draw 180 mA
Dimensions Gimbal Mount:3.914"W x 7.335"H x 3.621"D
In Dash Unit Size2:3.914"W x 6.770"H x 2.600"D

What's in the Box:
  • Piranhamax 4DI
  • XNT 9 DI T
  • Bracket
  • Powercord
  • Documentation


    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Brand: Humminbird

    UPC: 082324048739

    Model Number: 410160-1

    Weight: 2.000000
