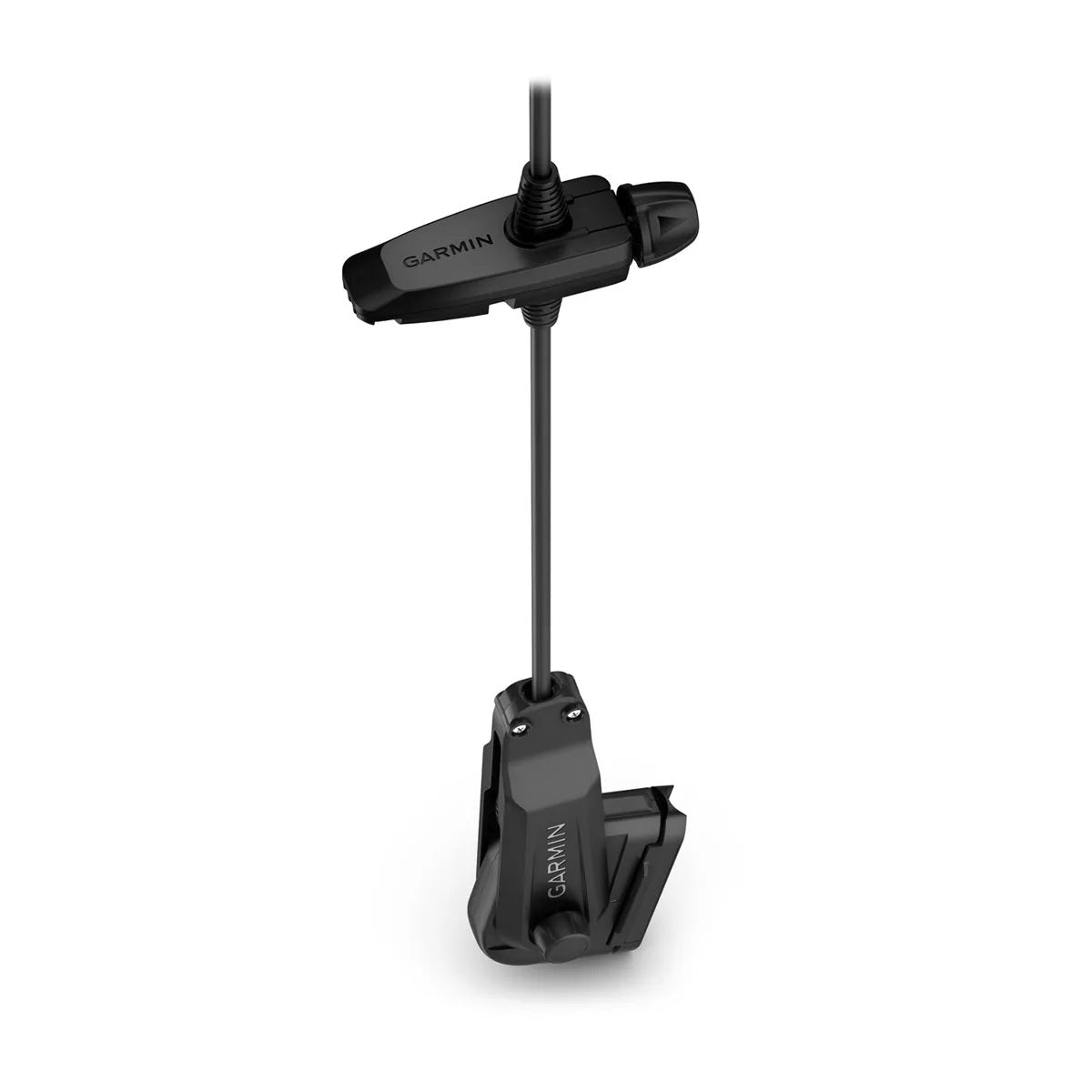

Garmin Panoptix PS22-IF Portable Live Sonar

Garmin PanoptixTM PS22-IF Portable Live Sonar

Model: 010-01945-10

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.

Specifications
Transducer beamwidth

With lens: 12 deg x 120 deg Without lens: 57 deg x 120 deg
Transducer cable length	9.8 feet (3 m)
Dimension	9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm)
Weight	2.60 lbs (1.18 kg)
Temperature range	Operating: 0 deg C to 40 deg C
Electrical Features
Power input	10-32 V
Fuse	4A
Sonar Features
Frequency	417 kHz
Transmit power	48 W
Maximum depth	300 feet
Connections
Garmin Marine Network Ports	1 (standard connector)
Sonar Modes
LiveVü Down	Yes
LiveVü Forward	Yes
Traditional sonar source	Yes

What's in the Box:

• Panoptix PS22-IF transducer
• Transducer rotator and bracket
• Removable lens
• Hardware
• Documentation

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759340223

Model Number: 010-01945-10
