Garmin

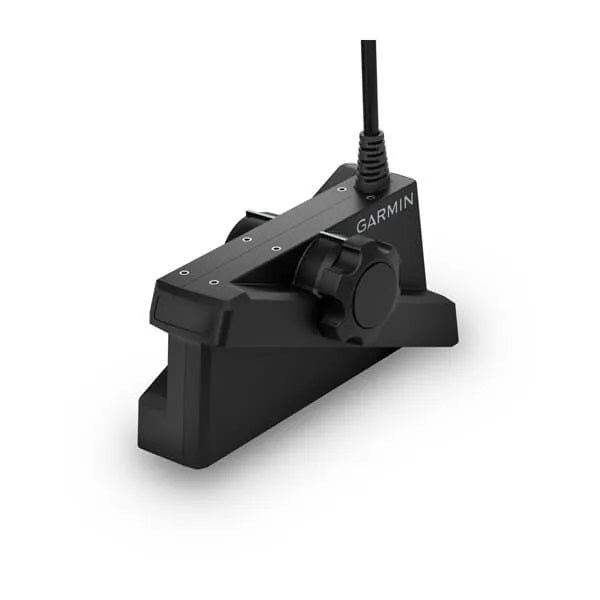

Garmin Panoptix Lvs62 Transducer Only

Garmin Panoptix Lvs62 Transducer Only

Regular price $2,499.99
Regular price Sale price $2,499.99
Sale Sold out

Garmin LVS62 Transducer Only for Livescope XR

Model: 010-02719-10
  • Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.
  • Find fish circling your boat with clear views close around your hull.
  • Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
  • Get maximum contrast and clarity in your images with vivid color palettes.
  • Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

Real-time sonar ensures that your live images are as accurate as possible.

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.

Now scout even farther ahead of your boat to see what’s happening in real time.

Explore live views of the activity deeper beneath your boat.

See under the water with a view from your perspective above the water.

Specifications
General
DIMENSION LVS62 transducer: 8.20" x 3.98" x 2.76" (20.8 x 10.1 x 7.0 cm)
WEIGHT LVS62 transducer with cable: 3.92 lbs (1.78 kg)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE LVS62 Transducer: Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY 265 - 550 kHz
MAXIMUM DEPTH Freshwater: Down and Forward: 500’ (152.0 m)
Saltwater: Down and Forward: 350’ (106.0 m)
SONAR TYPE Live
TARGET SEPARATION @100' 22""
PERSPECTIVE MODE MOUNT INCLUDED Yes
Connections
GARMIN MARINE NETWORK PORTS 1 (small connector)
Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS-SAFE DISTANCE 7"" (0.18 m)

What's in the Box:
  • LiveScope XR LVS62 transducer
  • Perspective mount (LiveScope XR LVS62 transducer only)
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • Documentation
