Garmin

Garmin Gt30-th Thru Hull Scanning Transducer

Garmin Gt30-th Thru Hull Scanning Transducer

Regular price $734.99
Regular price Sale price $734.99
Sale Sold out

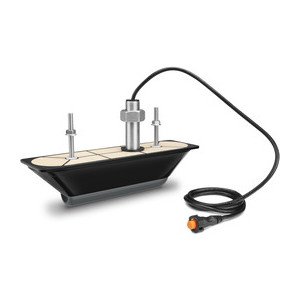

Garmin GT30-TH Thru Hull

Scanning Transducer

Model: 010-01961-10

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz ; for hull deadrises less than 5 degrees. Pair it with your GCV™ 10 scanning sonar module.

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
General
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Maximum depth
ClearVü 750 ft
SideVü 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 12-pin
Cable length 5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles Up to 25° deadrise
