Garmin

Garmin Gpsmap1243 12"" Plotter With Us And Canada Gn+

Garmin Gpsmap1243 12"" Plotter With Us And Canada Gn+

Regular price $2,799.99
Regular price Sale price $2,799.99
Sale Sold out

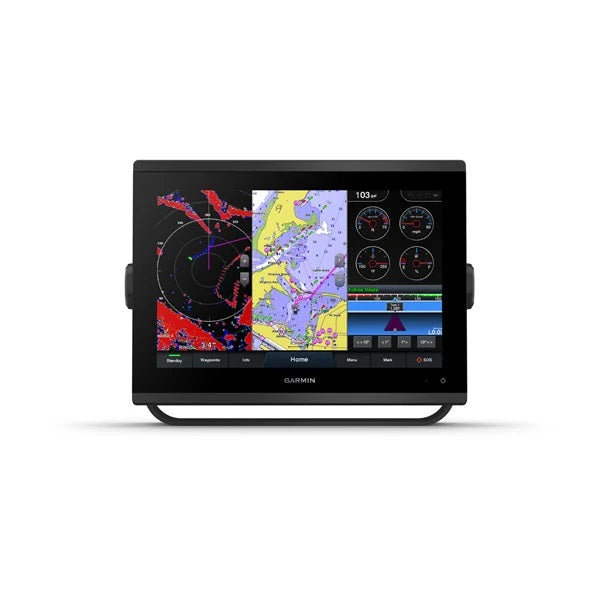

Garmin GPSMAP 1243 Chartplotter with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02367-60
  • New high-resolution in-plane switching touchscreen display offers improved sunlight readability and wide-angle visibility over previous-generation 12" units
  • Fast and responsive, this robust GPSMAP® system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
  • Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
  • Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
  • Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more. Requires compatible wind transducer (sold separately)
  • J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to your compatible third-party devices, such as EmpirBus™ digital switching
  • Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using NMEA 2000® and NMEA 0183 networking and the Garmin Marine Network
  • Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates and more.
  • Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately)""

""Get a sharper view from your connected helm with the GPSMAP® 1243 chartplotter. Its high-resolution 12" in-plane switching touchscreen and ultrasleek design seamlessly integrate into your Garmin marine system, putting full control at your fingertips. Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using HTML 5.0, NMEA 2000® and NMEA 0183 networking, J1939 for engines and the Garmin Marine Network. Add FrontVü™ forward-looking sonar (sold separately) (The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots[HT1] ) which can help in avoiding underwater obstructions ahead. Or pair your plotter with your other compatible Garmin devices, such as quatix® smartwatches, wind transducers, wireless remote controls and more.""

Specifications
General
PHYSICAL DIMENSIONS 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
DISPLAY SIZE 10.3"" x 6.4""; 12.1"" diagonal
DISPLAY RESOLUTION 1280 x 800 pixels
DISPLAY TYPE WXGA display
WEIGHT 6.6 lbs. (3.0 kg)
WATER RATING IPX7
POLARIZED SUPPORT Yes
POWER CONSUMPTION Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail, flush or flat
RECEIVER 10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS 2
Maps & Memory
PRELOADED MAPS Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
ACCEPTS DATA CARDS 2 microSD™ cards (back of unit)
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
Outdoor Recreation
TIDE TABLES Yes
Chartplotter Features
GARMIN RADAR COMPATIBLE Yes
GARMIN SONAR COMPATIBLE Yes (with external black box, sold separately)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes
GSD™ BLACK BOX SONAR SUPPORT Yes
GCV™ BLACK BOX SONAR SUPPORT Yes
ACTIVECAPTAIN COMPATIBLE Yes
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes
WIRELESS REMOTE COMPATIBLE Yes
SAILING FEATURES Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes (with external black box, sold separately)
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes (with external black box, sold separately)
CHIRP SONAR TECHNOLOGY Yes (with external black box, sold separately)
CLEARVü Yes (with external black box, sold separately)
SIDEVü Yes (with external black box, sold separately)
Connections
NMEA 2000® COMPATIBLE Yes
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS 1 BNC
VIDEO OUTPUT PORTS 1 HDMI
WIRELESS CONNECTIVITY Yes
J1939 COMPATIBLE Yes

What's in the Box:
  • GPSMAP 1243 chartplotter with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
