Garmin

Garmin Ghc50 Marine Autopilot Control Display

Garmin Ghc50 Marine Autopilot Control Display

Regular price $799.99
Regular price Sale price $799.99
Sale Sold out

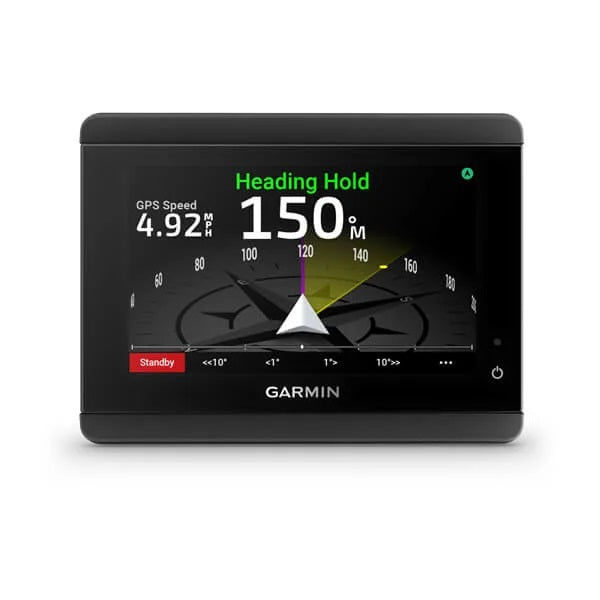

Garmin GHC™ 50 Marine Autopilot Instrument

Model: 010-02731-00
  • A 5" touchscreen interface with a bright display. Call it navigating with a simple touch.
  • Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
  • Share settings with your Garmin MFDs, and watch your integrated system come to life.
  • From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
  • Control your boat your way with wired or wireless remote-controlled options.

When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you.

The bright 5" WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.

The choice is yours — control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.

If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.

GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.

If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features

Specifications
General
Dimensions 4.13" x 4.51" x 2.01" (105 x 140 x 51 mm)
Touchscreen yes
Display resolution 800 x 480
Display type WVGA
Weight 11.57 oz (328 g)
Water Rating IPX7
Mounting options Flat or flush
Connections
NMEA 2000 ports 1
Garmin Marine Network ports 1
ANT+ (Connectivity) Yes
Garmin Wi-Fi Network (local connection) yes
Electrical Features
Power input 9 to 32 Vdc
Typical current draw at 12 VDC 220 mA
Maximum current draw at 12 VDC 400 mA
Maximum power usage at 10 VDC 4.9 W

What's in the Box:
  • GHC™ 50
  • Black trim piece snap cover
  • Protective cover
  • Flush mount gasket and hardware
  • Garmin Marine Network cable
  • Garmin Marine Network adapter cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connectors and terminators
  • Documentation
