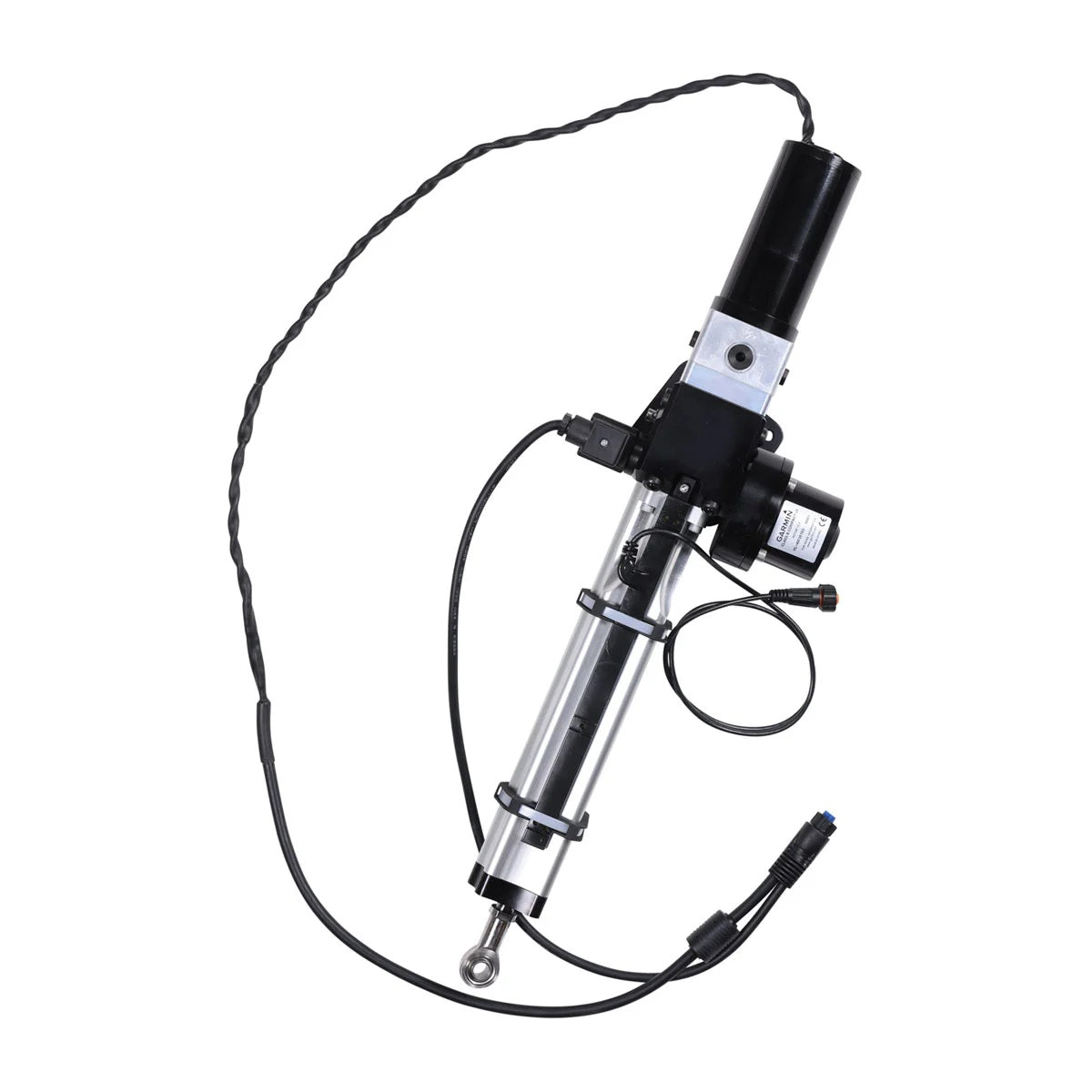

Garmin Class B Compact v2 Drive Unirt

Garmin Class B Compact v2 Drive Unit

Model: 010-12029-01

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications

Dimensions (WxHxD, centered)	31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
Drive unit type	integrated hydraulic linear
Stroke length	10" (254 mm)
Maximum thrust	1,610 lbs (730 kg)
Supply voltage	10V to 30 V (regulated to 12V by the ECU)
Average clutch current at 12V	1 Amp
Average motor current at 12V	2-4 Amps
Operating temperature	-15° C to 50° C

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759335816

Model Number: 010-12029-01

Weight: 24.000000
