Fusion Sg-tw101spw Component Tweeters
Fusion Sg-tw101spw Component Tweeters
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
/
per

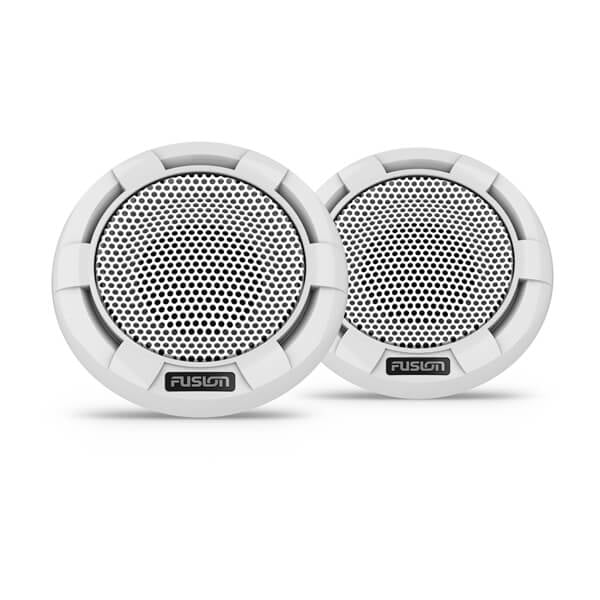

Fusion® Signature Series 3i Component Tweeters
Model: 010-02796-20Enhance your listening experience while you’re on the move with these marinized component tweeters. Designed to be dash-mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating and True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.
SpecificationsGeneral | |
Physical dimensions (diameter x depth) | 2.91"" x 1.64"" (74 x 41.6 mm) |
Weight | 4.2 oz (0.12 kg) |
Water and dust rating | IP65 |
Tweeter size | 1"" |
Peak power (watt) | 330 W |
RMS power (watt) | 60 W |
Sensitivity (1 W / 1 m) | 91 dB |
Frequency response | 3 kHz - 20 kHz |
Nominal impedance | 4 ohms |
Recommended amplifier power (RMS) | 25 - 140 W/Ch |
Operating temperature range | 32° to 122° F (0° to 50° C) |
Voice coil diameter | 1"" |
Material | Aluminum dome |
Tweeter connection | Flying lead with water-resistant 2-way connector, 5.9"" (150 mm) |
Compass-safe distance | 43.3"" (110 cm) |
Warranty | 3 years |
Mounting Dimensions | |
Mounting diameter clearance | 2.01"" (51 mm) |
Mounting depth clearance | 1.22"" (31 mm) |
What's in the Box:
- One pair of component tweeters
- 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1"))
- 2 water-resistant cable assembly with 2-pin connector (5.9"" (150 mm))
- Documentation
