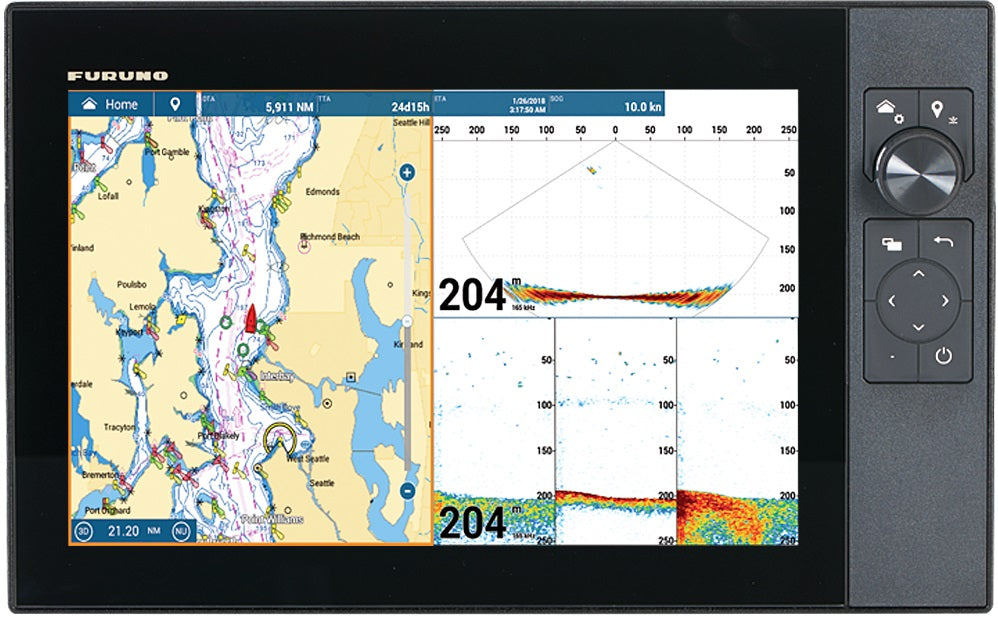

Furuno Tzt-12f 12"" Tztouch3 Multifunction Display

Furuno Tzt-12f 12"" Tztouch3 Multifunction Display

Regular price $3,495.00
Regular price Sale price $3,495.00
Sale Sold out

Furuno TZT12F 12"" TZtouch3 Chart Plotter/Fish Finder

Model: TZT12F
  • Go on a power trip with the most powerful MFD series available
  • EASY to use; because finding your happy place shouldn't be difficult!
  • The return of Hybrid Control
  • Protect your livelihood with new PIN CODE security
  • Never lose waypoints, routes or settings again with TZ Cloud
  • We gave you something to CHIRP about!
Type Color TFT multi touch In-Plane Switching (IPS) LCD
Screen Size 12.1"" Wide
Screen Resolution WXGA 1280 x 800
Screen Brightnes 900 cd/m2 (typical)
Display Colors 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish GPS/WAAS
Receiver Type GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS
Receiving Frequency L1 (1575.42 MHz)
Time to First Fix 100 s (cold start)
Accuracy 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update Interval 0.1 s (10Hz)
Cartography MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory Capacity 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required)
Display Modes Head-up*, North-up *Heading input required.
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking 30 ARPA Targets
Radar Alarms Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
Transmit Frequency CW: 50/200kHz CHIRP: 40kHz to 225kHz
Transducer 300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers
Display Range 2 to 1,200 m, shift: 0 to 1,200 m
Extension Mode ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM
Picture Advance 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option) School of fish, School of fish for bottom lock
CAN bus/NMEA2000 1 Port
NMEA0183 1 Serial Output Port
LAN 2 Ports (100 BASE-TX)
USB 1 Port (USB2.0) for touch monitor and control unit:
Video I/O Input: 2 Ports (NTSC/PAL)
Output: 1 Port (HDMI 720p)
AUX I/O 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output
SD Card Slot 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer 1 Port, 1 Port — DI-FFAMP
ENVIRONMENT -15°C to +55°C
Relative Humidity 93% or less at +40° C
Waterproofing IP56
Voltage 12-24 VDC
Current draw 2.3 - 1.2 A

What's in the Box:
  • Multi Function Display 12.1""
  • Grey Silicone Cover
  • Power Cable Assy 2m
  • 12 to 10pin Transducer adapter cable
  • LCD Cleaning Cloth
  • Flush Mount Fixture x 2
  • Flush Mount Sponge 12H x 2
  • Flush Mount Sponge 12V x 2
  • Slotted Head Hex Bolt M6x12 x 2
  • EMI Core GRFC-10
  • Connector Caps
  • Flush Mounting Template
  • Operator'sGuide
  • Installation Manual
