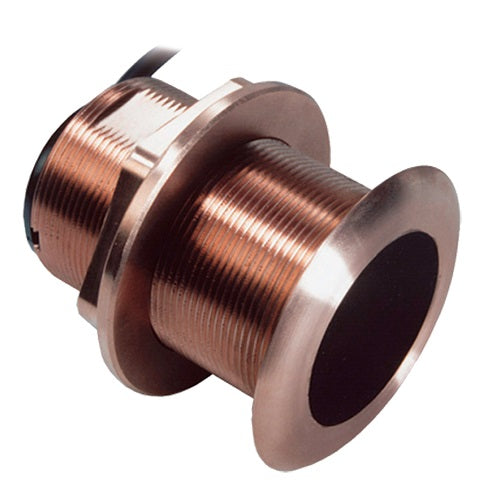

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

Model: 520T-BLD

• depth and temperature
• 600 W
• 50 kHz with a wide 45° beamwidth for performance to 353 m (1,200')
• 200 kHz with a 12° beamwidth for performance to 206 m (700')
• Right-angle cable exit saves space and protects transducer if stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
• 30 Foot Cable with 10-Pin Connector

Specifications

Weight	0.9 kg (2.0 lb.)
Recommended Boat Length	Up to 8 m (25')
Hull Material	Fiberglass or wood
Hull Deadrise	Best performance through 7°. Can accommodate up to a 12°.
Acoustic Window	Urethane
Hole Diameter	51 mm (2")

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Furuno

UPC: 611679360144

Model Number: 520T-BLD

Weight: 2.000000
