Flir Md625 Thermal Imager 640x480 Resolution 30hz

Flir Md625 Thermal Imager 640x480 Resolution 30hz

Regular price $6,999.99
Regular price Sale price $6,999.99
Sale Sold out

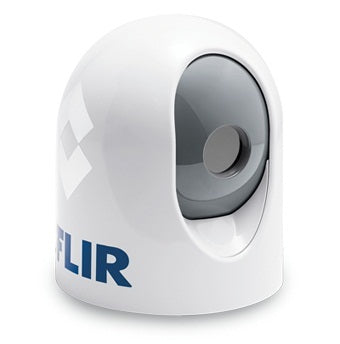

FLIR MD625 Compact Fixed View Marine Thermal Camera

Model: 432-0010-03-00
  • The MD625's 640 x 480 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare.
  • A compact, all weather, water proof enclosure provides easy mounting.
  • The MD625 is Ethernet-enabled for simple integration into your vessel's existing electronics.

The MD-Series is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.

Pan & Tilt Coverage Pan: ±30° per key Tilt: +34°, -27° (Locked in at Installation)
Size 6"" dia. 7"" ht.
Standard Package Camera Head with ~5""of Cable, Analog Video, and Ethernet (PoE powered device); Operator Manual CD
Construction Type F-type BNC with BNC-to-RCA adapter included for video out
Video Output NTSC or PAL, 30 Hz or <9Hz
Automatic Window Defrost Standard at Power-Up
EMI IEC 60945
Lightning Protection Standard
Operating Temperature Range -25°C to +55°C
Salt Mist IEC60945
Sand & Dust Mil-Std-810E
Shock 15 g vertical, 9 g horizontal
Storage Temperature Range -40°C to +85°C
Vibration IEC 60945; MIL-STD-810E
Water Ingress IPx6
Wind 100 knot (115.2 mph)
Field of View 25° 20° (NTSC)
Focal Length - Thermal 25 mm
Thermal Resolution 640 x 480
Power Consumption 4.8 W nominal; 12.5 W max
Power Requirements PoE injector required per IEEE 802.3af
Detector Type - Thermal 640 480 VOx Microbolometer
E-Zoom - Thermal 2 , 4
Field of View - Thermal 25° x 20°
Image Processing - Thermal FLIR Proprietary Digital Detail Enhancement

What's in the Box:
  • MD-625 Camera Unit
  • O-ring for base (Part Number AS568-251)
  • 7.7 meter (25-foot) double-shielded low smoke zero halogen (LSZH) Ethernet cable
  • 7.7 meter (25-foot) coaxial cable for video output
  • FLIR PoE injector (Part Number 4113746)
  • RJ45 weatherproof coupler (Part Number 4115028) and various other video adapters
  • Female-to-female F-type video connectors (Part Number 4115330)
  • Mounting hardware kit that includes six M6 x 60 stainless steel-threaded studs with washers, nylock nuts, and acorn nuts, for attaching the MD-Series camera body
  • Zip ties for use during installation
  • MD-Series documentation package
