Flir Md324 Thermal Imager 320x240 Resolution 30hz
Flir Md324 Thermal Imager 320x240 Resolution 30hz
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
/
per

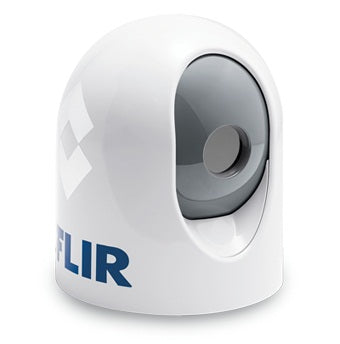

FLIR MD324 Compact Fixed View Marine Thermal Camera
Model: 43200100100- DISPLAYS HEAT, NOT LIGHT: The MD324's 320 240 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare.
- SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting.
- SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting.
- 2 Year Warranty
The MD-Series is an affordable, compact, fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.
SpecificationsPower Consumption | 4.8 W nominal; 12.5 W max |
Automatic Window Defrost | Standard at Power-Up |
EMI | IEC 60945 |
Lightning Protection | Standard |
Operating Temperature Range | -25°C to +55°C |
Salt Mist | IEC60945 |
Shock | 15 g vertical, 9 g horizontal |
Storage Temperature Range | -40°C to +85°C |
Vibration | IEC 60945; MIL-STD-810E |
Water Ingress | IPx6 |
Wind | 100 knot (115.2 mph) |
Dimensions | 6"" dia. 7"" ht. |
What's in the Box:
- Single payload camera with 320 x 240 pixel microbolometer
- 25 foot analog video cable (308-0164-25)
- 25 foot shielded Ethernet cable (308-0163-25)
- Weather proof Ethernet coupler (4115028)
- PoE Injector (4113746)
- Mounting Hardware
- Operator's Manual, Installation Guide on CD
