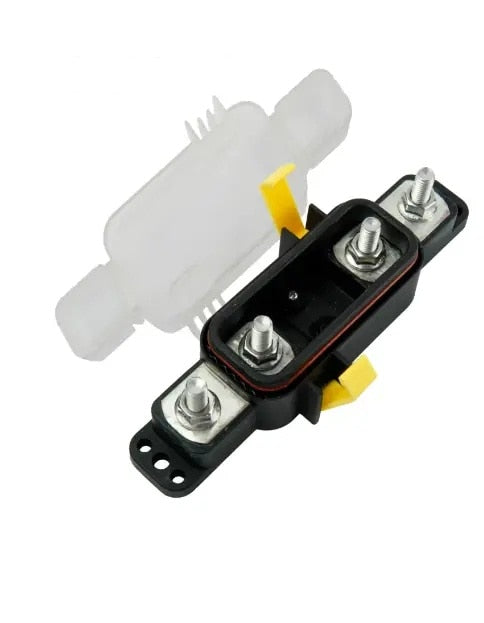

EGIS Class T Fuse Block 110 - 200 A Sealed Retail Pack

EGIS Class T Fuse Block 110 - 200 A Sealed Retail Pack

Model: 3911

• Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
• Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
• Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
• 4 Year Warranty: We stand behind our product's ability to meet your needs.

Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.

Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Specifications

Maximum Amperage	110-200A
MAX VOLTAGE	80 Vdc
Ingress Protection ratings	IP66, IP67, IP6K9K
Mounting holes	4x #10 (M5) & 2x 1/4" (M6)
Mounting screw max torque	50 in-lbs (5.5 N-m)
Busbar material	Tin-Plated Copper

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Egis Mobile Electronics

UPC: 850067590712

Model Number: 3911

Weight: 0.45
