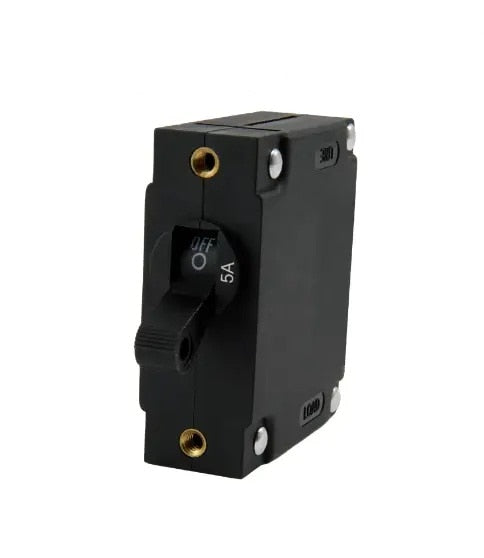

EGIS A Series Black Toggle Panel Mount Circuit Breaker Single Pole AC/DC 5 Amp Retail Pack

EGIS A Series Black Toggle Panel Mount Circuit Breaker Single Pole AC/DC 5 Amp Retail Pack

Model: 3211-05

• AC & DC Rated to cover a wide range of system application needs.
• Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
• Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
• 4 Year Warranty: We stand behind our product's ability to meet your needs.

Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power

Specifications

CONTINUOUS CURRENT (AMPS)	5
MAX VOLTAGE	277 Vac / 80 Vdc
Regulatory Compliance	UL 1077
Electrical Endurance @ Rated current	6,000 Cycles
Interrupt Capacity	5kA / 277Vac, 1.5kA / 80 Vdc

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Egis Mobile Electronics

UPC: 850067590996

Model Number: 3211-05

Weight: 0.15
