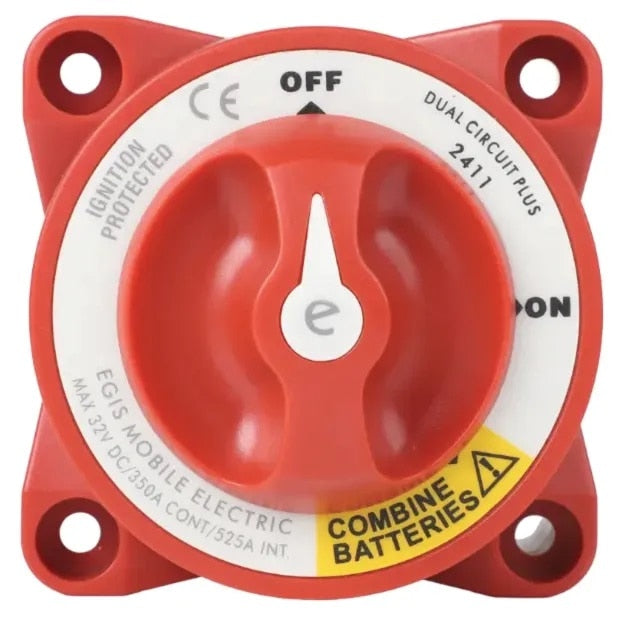

EGIS 2411 e-Series 350A Dual Circuit with Combine Battery Switch

EGIS e-Series 350A Dual Circuit with Combine Battery Switch

Model: 2411

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• Ignition Protected
• Safe for installation in closed compartments with potential explosive gases.
• Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
• Flexible Mounting Options allow for multiple mounting con?gurations and a variety of installation types.
• Harsh Environment Design with stainless-steel hardware, serrated ?ange nuts, and high temperature materials.
• Simple Batiery Control Operation allows connecting, isolating, and combining of up to two batieries with one switch.

Specifications

Maximum Voltage (Single Circuit)	48V DC
Maximum Voltage (Selector / Dual Circuit)	32V DC
Stud/Thread Size	3/8"-16
Terminal Stud Torque	140 in-lbs (15.8 N-m)
Ring Terminal Size Acceptance	3/8" (M10)
Amperage Rating	350A

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Egis Mobile Electronics

UPC: 850067590583

Model Number: 2411

Weight: 0.65
