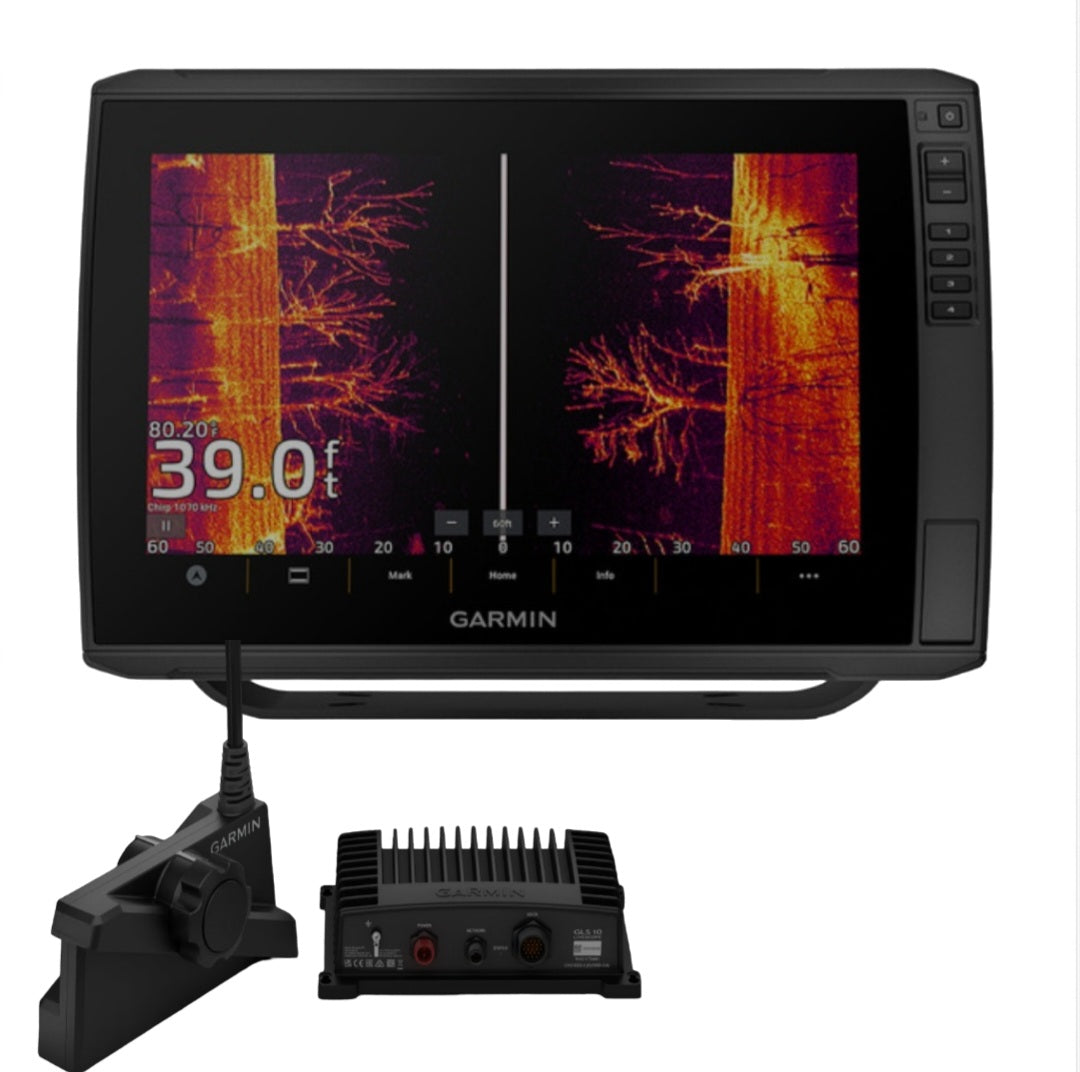

ECHOMAP™ Ultra 2 126sv Livescope LVS34 Bundle

ECHOMAP™ Ultra 2 126sv Livescope LVS34 Bundle

Regular price $4,399.98
Regular price Sale price $4,399.98
Sale Sold out

ECHOMAP™ Ultra 2 126sv Livescope LVS34 Bundle

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping.

Features:

  • ECHOMAP™ Ultra 2 126sv with Garmin Navionics+™
  • 12” touchscreen
  • Supports livescope™ sonar, and more
  • Wirelessly network; share sonar, waypoints, and routes.
  • Capture screen recordings to share fish catches
  • Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

  • ECHOMAP Ultra 126sv with optional Garmin Navionics+
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation

Specifications

General:

  • Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
  • Weight: 5.5 lbs (2.5 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps & Memory:

  • Accepts Data Cards: 2 microSD cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Sensors:

  • GPS: Yes
  • GLONASS: Yes
  • Galileo: Yes
  • BeiDou: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
  • Tide Tables: Yes (see Additional)

Optional Map Support:

  • Garmin Navionics+™: Yes
  • Garmin Navionics+ Vision+™: Yes
  • TOPO 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes

Chartplotter Features:

  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • ActiveCaptain® Compatible: Yes
  • Sailing Features: Yes

Electrical Features:

  • Power Input: 9 to 18 VDC
  • Typical Current Draw at 12 VDC: 2.5 A
  • Maximum Current Draw at 12 VDC: 5.0 A
  • Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

  • Displays Sonar: Yes
  • Power Output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
  • ClearVü: Built-in 260/455/800/1000/1200 kHz
  • SideVü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope: Yes

Connections:

  • NMEA 2000® Ports: 1
  • Garmin Marine Network Ports: 2 (Large Connector)
  • 12-Pin Transducer Ports: 12-Pin Scanning Sonar
  • ANT+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes


LiveScope™ Plus System with GLS 10™ & LVS34 Transducer

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.

Features:

  • See images clearly with improved screen clarity, transducer sensitivity, and target separation.
  • Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts.
  • Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
  • Get maximum contrast and clarity in your images with vivid color palettes.
  • Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

Real-Time Images

Real-time sonar ensures that your live images are as accurate as possible.

Clear Vision

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

Image Stabilization

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Vivid Color Palettes

Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

Forward Mode

Scout ahead of your boat to see what’s happening in real-time.

Down Mode

Explore live views of the activity directly beneath your boat.

Perspective Mode

See under the water with a view from your perspective above the water.

In The Box:

  • LiveScope GLS 10 sonar black box
  • Panoptix LVS34 transducer
  • Perspective mount
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • 2 meter Garmin Marine Network cable (small connector)
  • Network adapter cable
  • Documentation
