Digital Antenna

Digital 1673pw Wideband Cellular 4g/5g/lte/wifi Antenna 9dbi L-bracket

Digital 1673pw Wideband Cellular 4g/5g/lte/wifi Antenna 9dbi L-bracket

Regular price $199.14
Regular price Sale price $199.14
Sale Sold out

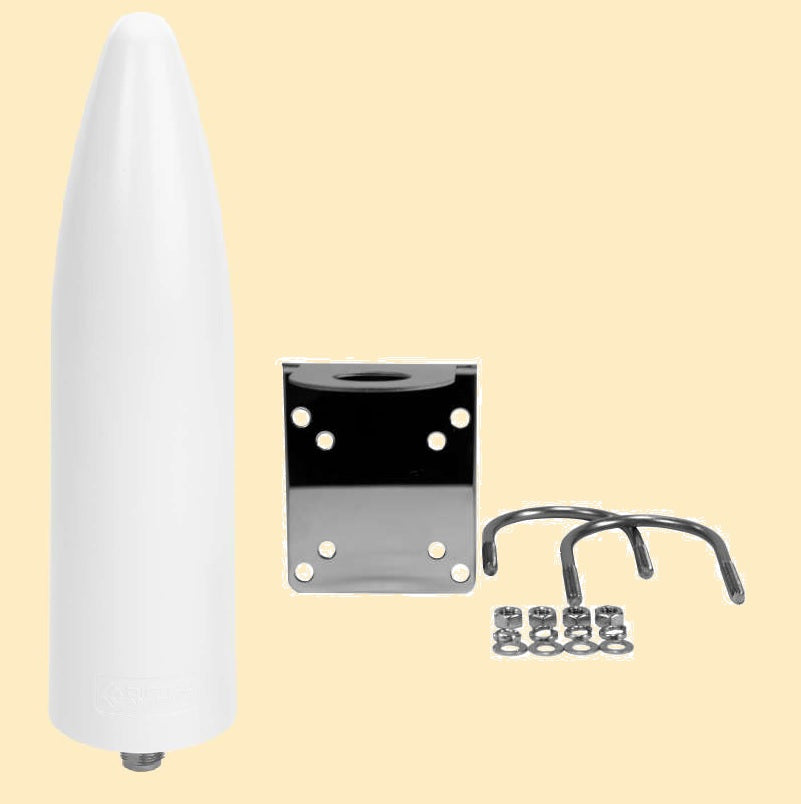

Digital Antenna 1673-PW Omni-Directional 600-3000MHZ 4G/5G/LTE/WiFi Bullet Antenna with L-Bracket

Model: 1673-PW
  • Maximum power for 4G, 5G, WiFi signals
  • 9dBi omni-directional gain
  • Rugged UV stable polyurethane finish
  • Foam filled to withstand extreme vibrations
  • 316 stainless steel base
  • Includes L-Bracket mount
  • Weatherproof N female connector
  • 5 year warranty

Digital Antenna's NEW omni-directional, bullet shaped antenna with stainless steel base provides excellent performance from 695-3000 MHz and is ideal for mobile or fixed locations.

High gain 9dBi bullet antenna designed and manufactured in USA by Digital Antenna, greatly improves signal strength providing maximum signal range. The new design includes a rugged stainless steel base.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways.

Specifications
Radiation Pattern Omni-Directional
Bandwidth VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ
Gain 9dBi
Cable Not included
Impedance 50 ohms
Max Input Power 50 watts
Exterior Finish White polyurethane high gloss UV stable
Dimensions 8.875"" L x 2.375"" OD (225 x 60 mm
Weight 15 oz
RF Connector N type female
Installation Raised Stainless steel deck mount
Elements Copper - Hand soldered
Polarization Vertical
Wind Rating >160KPH
Operating Temp 30 F to +175 F

What's in the Box:
  • 1673-PW Antenna
  • L-Bracket mount
