Bob's Machine Action Series Tilt & Trim f/Clamp on Motors - Silver - 30HP

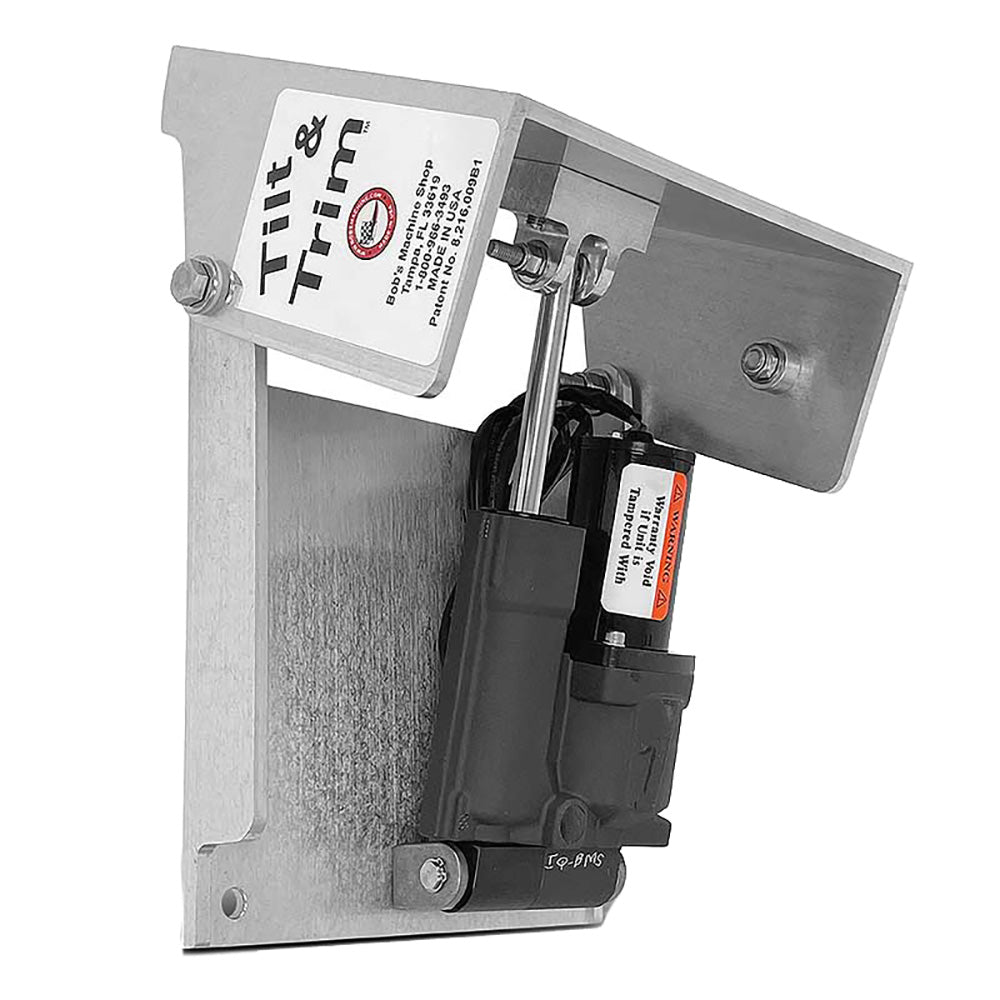

Action Series Tilt & Trim for Clamp on Motors - Silver - 30HP

The Action series Tilt and Trim, all in one unit!  Easy rigging and tons of benefits!

For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30hp(clamp on style only), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.

The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard.

Features:

• The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style.
• The Over all mounting dimensions, which are: 10″ wide by 11.5″ length
• Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty.
• Stackable spacers for the clamps included standard!
• Limited Lifetime Structure Warranty against manufacturing defects
• 3 Year Action Pump Warranty

Brand: Bob's Machine

UPC: 894721000872

Model Number: 100-701100-NOPC
