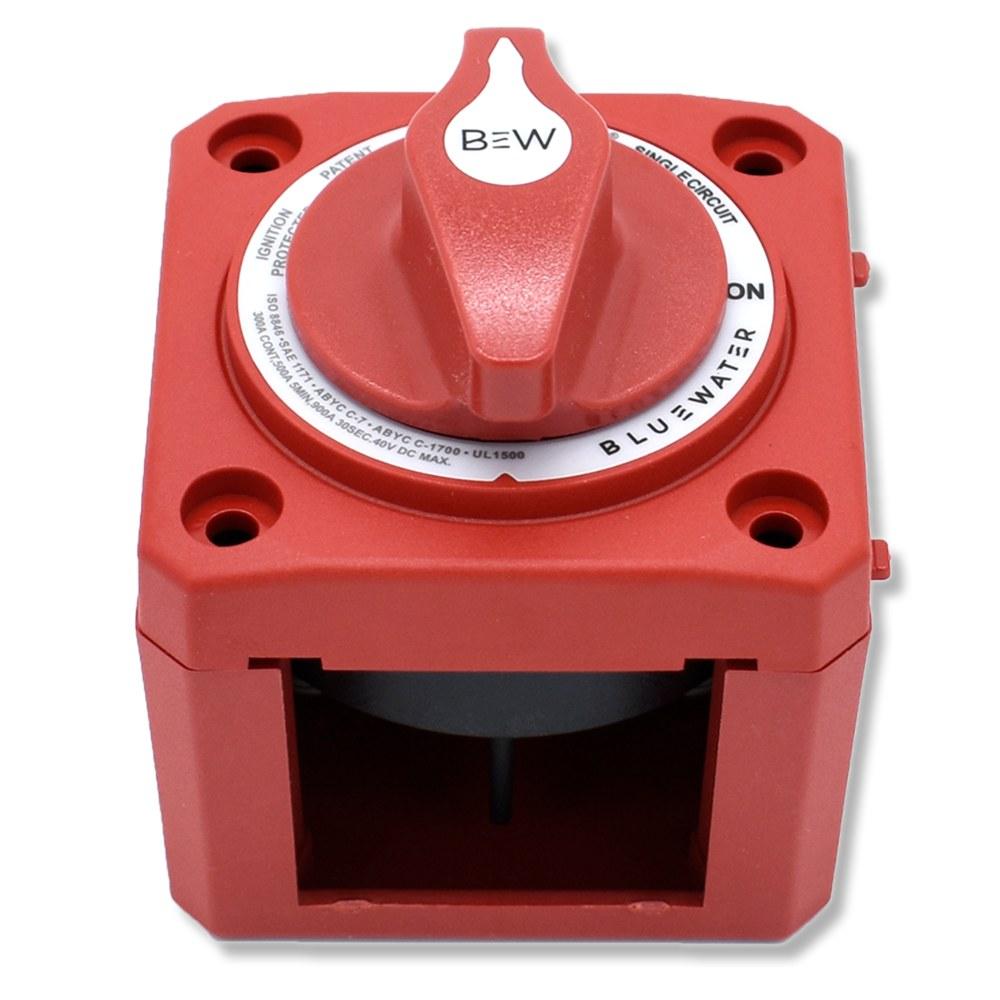

Bluewater On/Off Battery Switch, 300A, Surface Mount with Base, Red

Bluewater On/Off Battery Switch, 300A, Surface Mount with Base, Red

Model: 9800-006-11

• Single-Circuit Control - Isolates a battery or equipment when not in use to prevent battery drain.
• Heavy-Duty Rating - 300A continuous, 500A intermittent and 900A cranking.
• Ignition Protected - Safe for gasoline-powered boats.
• Surface Mount - Includes a base for surface mounting.
• Tactile Knob - Textured red knob lets you confirm the switch position by feel.

This Bluewater On/Off Battery Switch provides simple, secure control of power to a single circuit for marine and RV applications.

It's built from non-corrosive marine-grade metals and reinforced polycarbonate, and includes an international ON/OFF label and icon label set.

Specifications

Positions	On / Off
Continuous Rating	300A DC
Intermittent Rating	500A DC (5 min)
Cranking Rating	900A DC (30 sec)
Max Voltage	40VDC
Cable Size	Up to 4/0 AWG
Mounting	Surface mount (with base)
Ignition Protected	Yes
Knob Color	Red

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196331150

Model Number: 9800-006-11
