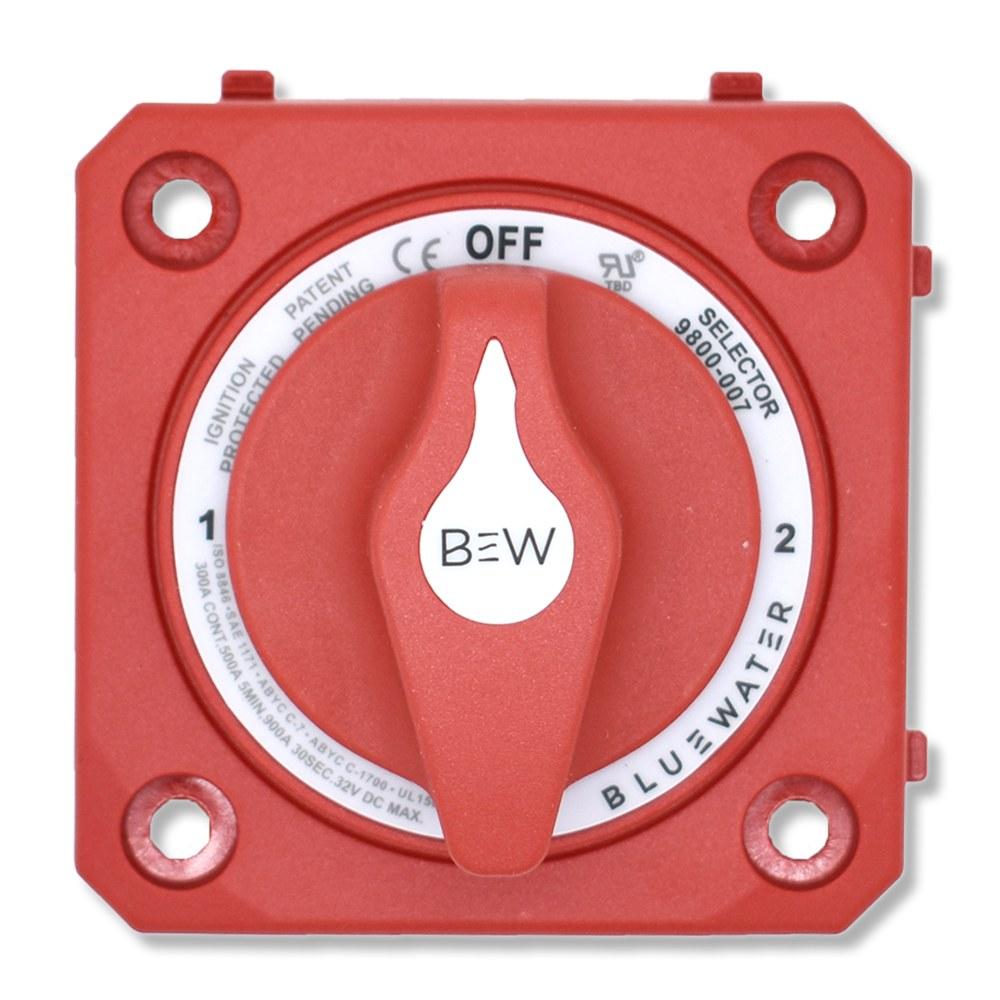

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, No Base, Red

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, No Base, Red

Model: 9800-007-10

• Full Battery Control - Route power from Battery 1, Battery 2, both, or neither.
• Heavy-Duty Rating - 300A continuous, 500A intermittent and 900A cranking.
• Heavy-Duty Studs - 3/8"-16 tin-plated copper studs accept 3/8" and M10 ring terminals, with 7/8" stud length for multiple cables.
• Ignition Protected - Safe for gasoline-powered boats; also suited to RV applications.
• Panel Mount - Supplied without a base for front or rear panel mounting.

This Bluewater Off/1/2/Both selector switch is ideal for managing power flow, setting up backup systems and charging multiple battery banks.

It's built from non-corrosive marine-grade metals and reinforced polycarbonate, with tactile knob textures to confirm position by feel. International ON/OFF legends and an icon label set are included.

Specifications

Positions	Off / 1 / 2 / Both
Continuous Rating	300A DC
Intermittent Rating	500A DC (5 min)
Cranking Rating	900A DC (30 sec)
Max Voltage	32VDC
Studs	3/8"-16 tin-plated copper, 7/8" length
Cable Size	Up to 4/0 AWG
Mounting	Panel mount (no base)
Knob Color	Red

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196331174

Model Number: 9800-007-10
