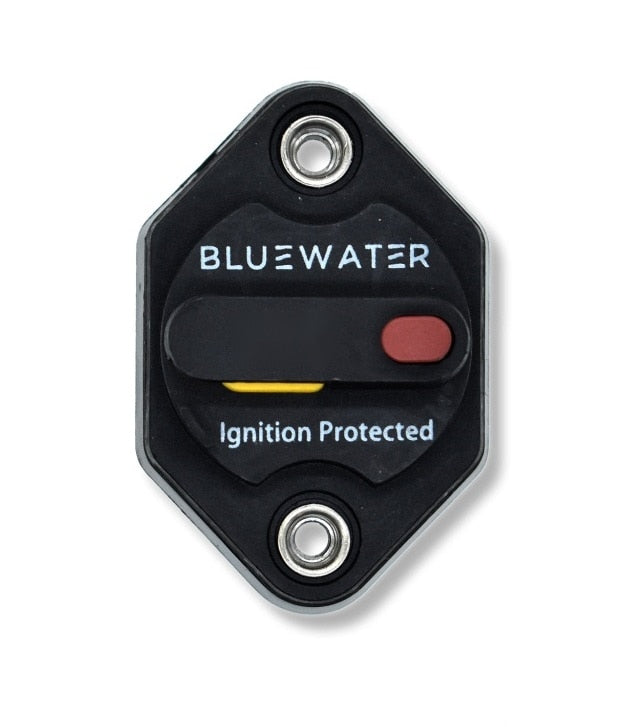

Bluewater Mid-Range 40A Panel Mount Circuit Breaker

Bluewater Mid-Range 40A Panel Mount Circuit Breaker

Model: 78000-9600-40

• 40 Amp Rating - Reliable overload and short-circuit protection for moderate-load DC circuits.
• 12-32V DC Compatible - Suited to marine, RV and mobile electrical systems.
• High Interrupting Capacity - Up to 2500A for dependable short-circuit protection.
• Rugged Build - Thermoplastic housing with nickel-plated copper components.
• Marine Grade - Withstands vibration, moisture and harsh marine environments.

Bluewater Mid-Range circuit breakers protect moderate-load DC systems such as auxiliary and accessory circuits.

This 40A panel mount version installs cleanly in a panel and connects with #10 ring terminals. Surface mount versions are also available.

Installation: Use #10 ring terminals to connect.

Specifications

Current Rating	40A
Max Voltage	32V DC
Voltage Compatibility	12-32V DC
Interrupting Capacity	Up to 2500A
Mounting	Panel mount
Material	Thermoplastic / Nickel-plated copper
Terminals	#10 ring terminal

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196332379

Model Number: 78000-9600-40
